  15. Pilot light, Harmony XB7, FASTON, LED, Red, 24 V

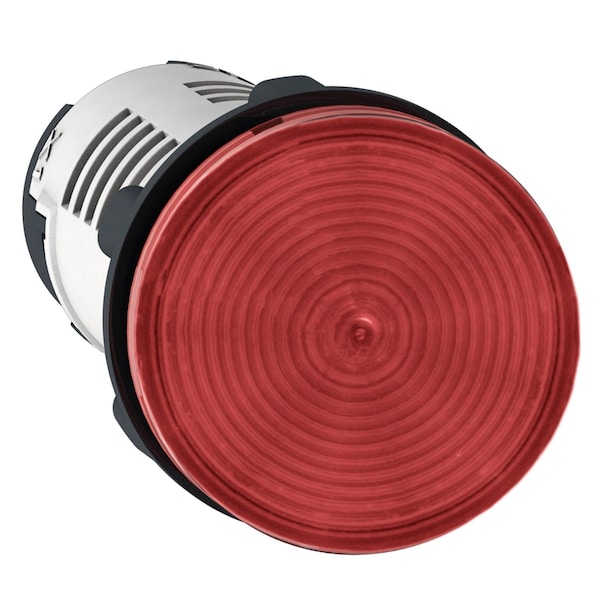

Schneider Electric Pilot light, Harmony XB7, FASTON, LED, Red, 24 V XB7EV04BP3 - main

Pilot light, Harmony XB7, FASTON, LED, Red, 24 V

  • Mfr # XB7EV04BP3

  • Zoro # G500905369

product price: $43.25
/ea
Sold in multiples of 10 for $432.50

Key Features

Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Red
Terminal Connection
Faston
Standards
JIS C8201-5-1, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, JIS C8201-1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB7EV04BP3
Zoro #
G500905369
UPC #
-
Country of Origin
Indonesia

Dimensions

Panel Cutout Diameter
22 mm
Height
29 mm
Depth
54 mm
Width
29 mm
Mounting Diameter
22 mm

Details

Item
Illuminated Push Button
Operator Illumination
Illuminated
Head Color
Red
Terminal Connection
Faston
Standards
JIS C8201-5-1, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, JIS C8201-1
Protective Treatment
TH
Shape of Signaling Unit Head
round
Service Life
70000 h at rated voltage and 25°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Cap/Operator or Lens Colour
red
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Signalling Type
steady
Device Mounting
fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-5-1
Operator Additional Information
with plain lens
Fixing Mode
fixing nut beneath head 2-2.4 N.m
Electromagnetic Compatibility
disturbing field emission class B conforming to EN 55011
Connections - Terminals
Faston connectors 1 x 6.35 mm EN/IEC 60947-1, Faston connectors 2 x 2.8 mm EN/IEC 60947-1
Overvoltage Category
class II IEC 60536
Light Source
LED
Current Consumption
20...27 mA
Device Short Name
XB7
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
Device Presentation
monolithic product
Ambient Air Temperature For Storage
-40-70°C
Ip Degree of Protection
IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
Range of Product
Harmony XB7
Ambient Air Temperature For Operation
-25-70°C
Nema Degree of Protection
NEMA 4 UL 50 E, NEMA 12 UL 50 E
Product or Component Type
pilot light
Shock Resistance
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Supply Voltage Limits
19.2-30 V DC, 21.6-26.4 V AC
Fixing Center
>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
Bulb Base
integral LED
Terminals Description Iso N°1
(X1-X2)PL
Ip Degree Of Protection
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Shape Of Signaling Unit Head
round
Product Or Component Type
pilot light
Cap/Operator Or Lens Colour
red
Nema Degree Of Protection
NEMA 4 UL 50 E || NEMA 12 UL 50 E

Description

PILOT LIGHT FASTON - LED - Red - 24v
