  15. Pilot light, Harmony XVL, plastic, red, 8mm, protruding LED, faston connectors, 24V DC

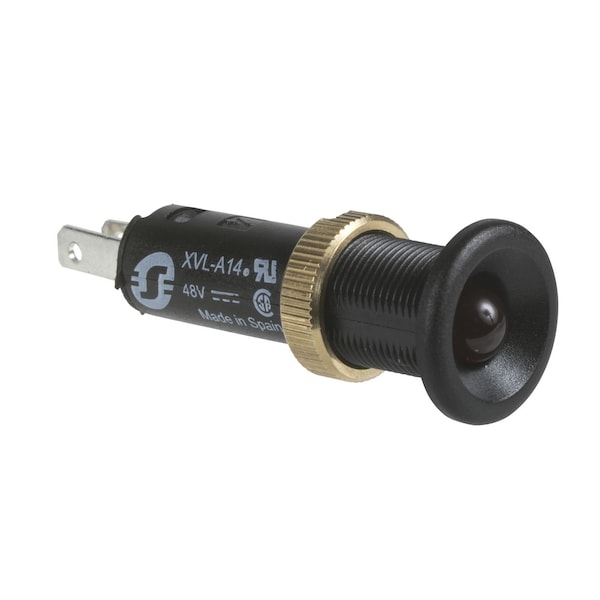

Schneider Electric Pilot light, Harmony XVL, plastic, red, 8mm, protruding LED, faston connectors, 24V DC XVLA134 - main

Pilot light, Harmony XVL, plastic, red, 8mm, protruding LED, faston connectors, 24V DC

  • Mfr # XVLA134

  • Zoro # G0858201

product price: $33.19
/ea

Key Features

Voltage
24V
Color
Red
Lamp Type
Protruding LED
Terminal Connection
Tag for Faston connectors & Soldering connectors
Contact Form
(X1-X2)PL
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XVLA134
Zoro #
G0858201
UPC #
785901247968
Country of Origin
Spain

Dimensions

Height
12 mm
Length
34 mm
Width
12 mm
Mounting Diameter
8 mm

Details

Item
Pilot Light 24V 8Mm +Options
Voltage
24V
Color
Red
Lamp Type
Protruding LED
Terminal Connection
Tag for Faston connectors & Soldering connectors
Contact Form
(X1-X2)PL
Average Life
100000 hr
Standards
UL; CSA
IP Rating
IP40
Ambient Air Temperature For Operation
-25-70°C
[Ui] Rated Insulation Voltage
50 V IEC 60947-1
Component Name
XVL
Supply Circuit Type
DC
Range of Product
Harmony XVL
Nominal Voltage Limit
0.8...1.1 Un
Protection Type
built-in by diode, integral ballast resistor
Current Consumption
18 mA
Overvoltage Category
class 3 IEC 60536, class 3 NF C 20-030
Protective Treatment
TC
Product or Component Type
LED pilot light with black bezel
[Us] Rated Supply Voltage
24 V
Connections - Terminals
tag for Faston connectors 2.8 x 0.5 mm, tag for soldering connectors
Ip Degree of Protection
IP40 IEC 60529, IP40 NF C 20-010
Ambient Air Temperature For Storage
-40-70°C
Bulb Lifespan
100000 h

Description

Pilot Light 24V 8Mm +Options
