- Item
- Programmable Receiver
- Material
- Plastic
- For Use With
- 22 mm Wireless Push Buttons
- Features
- 24-240 V AC/DC input power
- Standards
- EN/IEC 60947-5-1
- Status Led
- 1 LED Green power ON || 1 LED green and yellow reception signal || 4 LEDs Green relay ON
- Maximum Power Consumption In W
- 20 W DC
- Antenna Type
- omnidirectional
- Output Contacts
- 4 PNP
- Function Of Module
- monostable
- Modulation Technique
- O-QPSK
- Device Short Name
- ZBRRC
- [Ui] Rated Insulation Voltage
- 60 V IEC 60664-1
- Transmission Frequency
- 2405 MHz
- Radio Agreement
- RSS || SRRC || ANATEL || ARIB T66 || FCC || ICASA
- Operating Position
- any position without derating
- Ip Degree Of Protection
- IP20 IEC 60529 casing) || IP20 terminals)
- Electrical Connection
1 conductor cable 0.14-2.5 mm² - AWG 26 to AWG 14 - solid - without cable end IEC 60947-1 || 2 conductors cable 0.14-1.5 mm² - AWG 26 to AWG 16 - solid - without cable end IEC 60947-1 || 1 conductor cable 0.14-4 mm² - AWG 26 to AWG 12 - flexible - with cable end IEC 60947-1 || 2 conductors cable 0.14-1.5 mm² - AWG 26 to AWG 16 - flexible - with cable end IEC 60947-1
- Maximum Power Consumption In Va
- 20 VA DC
- Reset Time
- 2 ms time delay
- Insulation Resistance
- > 500 MOhm 500 V DC NF C 20-030
- Vibration Resistance
- +/- 7.5 mm 5-14 Hz)IEC 60068-2-6 || 2 gn 8-150 Hz)IEC 60068-2-6
- Communication Port Protocol
- Zigbee green power 2.4 GHz IEEE 802.15.4
- [Us] Rated Supply Voltage
- 24 V DC - 15 to 20 %
- Tightening Torque
- 0.5-1 N.m EN/IEC 60947-1
- Maximum Switching Current
- 0.2 mA DC
- Time Delay Range
- 0.5 s - 15 to 15 %)
- Maximum Sensing Distance
- 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
- [Uimp] Rated Impulse Withstand Voltage
- 0.8 kV
- Response Time
- < 30 ms after transmitter clicks
- Maximum Voltage Drop
- <2 V DC 2 A
- Pollution Degree
- 2 IEC 60664-1
- Electromagnetic Compatibility
immunity for industrial environments EN/IEC 61000-6-2 || conducted and radiated emissionsclass B CISPR 22 || electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 6 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 to 2000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 3 V/m 80 to 2700 MHz, distance = 20 m) IEC 61000-4-3 || electrical fast transient/burst immunity test 2 kV power supply wires) IEC 61000-4-4 || conducted RF disturbances 10 V IEC 61000-4-6 || radiated emission ETSI EN 300 440-1 || conducted emission EN 300-489-1 || conducted emission ETSI EN 300 489-3 || radiated emission ETSI EN 300 440-2 || electrical fast transient/burst immunity test 1 kV PNP output wires) IEC 61000-4-4 || 1.2/50µs shock waves immunity test 0.5 kV differential mode) IEC 61000-4-5 || 1.2/50µs shock waves immunity test 1 kV common mode) IEC 61000-4-5 || immunity to microbreaks and voltage drops 7 ms IEC 61000-4-11
- Level Or Class
- 5M00G7W
- Short-Circuit Protection
- 0.4 A fuse fast blow
- Ambient Air Temperature For Storage
- -40-70°C
- Number Of Channels
- 1
- Overvoltage Category
- III IEC 60664-1
- Breaking Capacity
- 4.8 W per output)
- Housing Material
- self-extinguishing plastic
- Relative Humidity
- 90-90 % -20-55°C, without condensation ETSI EN 300 440-1
- Max Power Consumption In W
- 1 mW

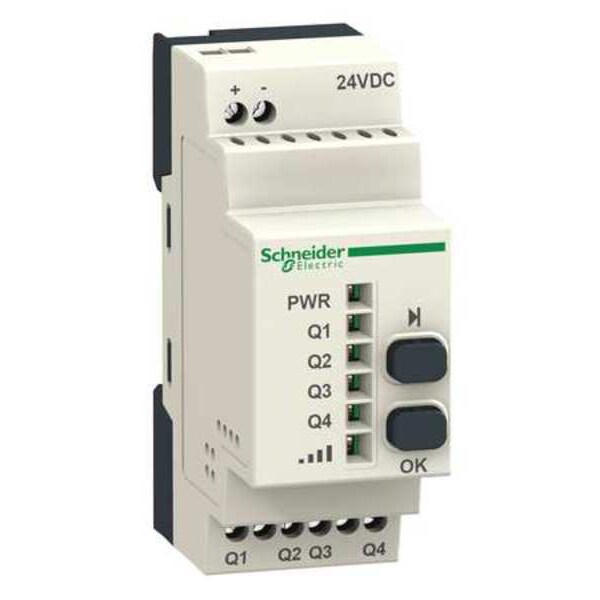

- Product Or Component Type
- programmable receiver
- Product Certifications
- CCC || CSA || GOST || C-tick || UL
- Minimum Switching Current
- 10 mA 5 V DC
- Output Type
- transistor PNP
- Rated Short-Duration Power Frequency Withstand Voltage
- 1 kV 50 Hz EN/IEC 60947-5-1
- Antenna Gain
- 0 dBi
- Product Specific Application
- interface to PLC
- Surge Withstand
- 0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
- Marking
- CE
- Shock Resistance
- 10 gn 16 ms) 6000 shocks IEC 60068-2-27
- Mounting Support
- 35 mm symmetrical DIN rail conforming to EN/IEC 60715 || mounting plate
- Utilisation Category
- DC-13 EN/IEC 60947-5-1
- Compatible Product Type
- Push Buttons, Limit Switches, Wireless Push Buttons
- Compatible with Series
- XB4R, XB5R, XCKW, XCMW
- Shell Material
- Plastic
- Compatible Series
- XB4R, XB5R, XCKW, XCMW
