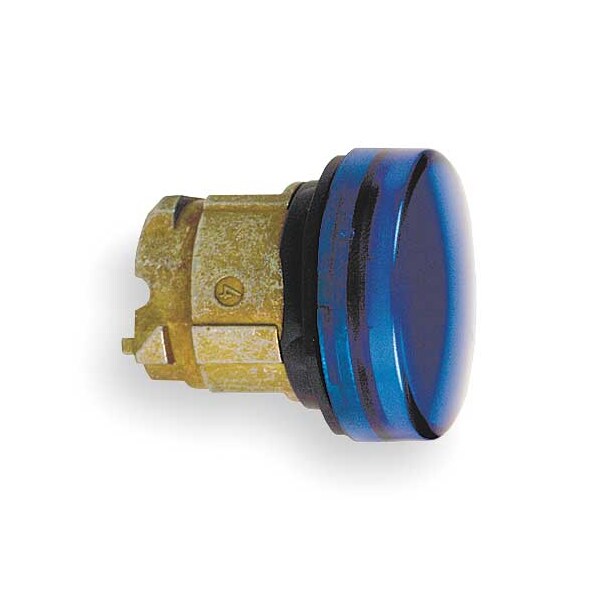

Schneider Electric Pilot Light Head, Blue, 22mm ZB4BV06 - main

Pilot Light Head, Blue, 22mm

  • Mfr # ZB4BV06

  • Zoro # G1317005

product price: $8.15
/ea

Key Features

Material
Chrome
Lens Type
Smooth
Color
Blue
Suggested Lamp Type
Mfr. Series BA9 Lamp Module
Size
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ZB4BV06
Zoro #
G1317005
UPC #
785901354239
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Depth
31 mm
Cad Overall Width
29 mm
Cad Overall Height
29 mm
Mounting Diameter
22 mm
Compatible Panel Cutout Diameter
22 mm

Details

Item
Pilot Light Head
Material
Chrome
Lens Type
Smooth
Color
Blue
Suggested Lamp Type
Mfr. Series BA9 Lamp Module
Lamp Type
Incandescent, LED, Neon
IP Rating
IP66, IP67, IP69, IP69K
For Use With
Schneider BA9 Light Modules
NEMA Rating
13, 4X
Basic Material
Metal
Lens Material
Plastic
Body Material
Chrome Plated Metal
Shape
Round
Standards
CSA C22-2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 508
Product Type
Pilot Light Head
Bezel Material
chromium plated metal
Head Type
standard
Operator Additional Information
with plain lens
Shape Of Signaling Unit Head
round
Overvoltage Category
class I IEC 60536
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Electrical Composition Code
P3 front mounting BA 9s || P4 front mounting BA 9s and transformer
Product Compatibility
BA 9s
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Protective Treatment
TH
Ambient Air Temperature For Storage
-40-70°C
Cap/Operator Or Lens Colour
blue
Device Presentation
basic element
Product Or Component Type
head for pilot light
Ambient Air Temperature For Operation
-40-55°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ik Degree Of Protection
IK06 IEC 50102
Device Short Name
ZB4
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Compatible Lamp Type
BA9 Lamp Module
Compatible with Series
XB4
NEMA Enclosure Rating
13, 4X
Light Head Material
Metal

Description

Pilot Light Head, Size 22 mm, Color Blue, Shape Round, Lens Type Smooth, Basic Material Metal, NEMA Rating 13, 4X, Lamp Type Incandescent, LED, Neon, Lens Material Plastic, Body Material Chrome Plated Metal, Suggested Lamp Type Mfr. Series BA9 Lamp Module, IP Rating IP66, IP67, IP69, IP69K, Standards CSA C22-2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 508
