  13. Rope Pull Switch Transmitter, plastic
Shop All Push Button Accessories
Schneider Electric

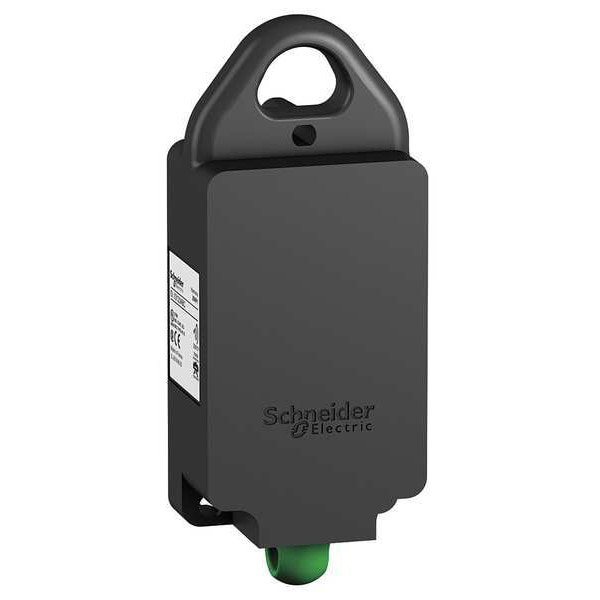

Rope Pull Switch Transmitter, plastic

product price: $168.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • For Use With Harmony Series
  • Features Dust Resistant, Impact Resistant, No Batteries Needed, Vibration Resistant, Water Resistant, Wireless
  • Power Rating 3 mW
  • Color Black
  • Material Plastic
See all product information

Product Information

Dimensions

Overall Length 2.2 in
Cad Overall Depth 38 mm
Bandwidth 5-5 MHz
Cad Overall Height 144 mm
Cad Overall Width 56 mm

Details

Item Transmitter
For Use With Harmony Series
Features Dust Resistant, Impact Resistant, No Batteries Needed, Vibration Resistant, Water Resistant, Wireless
Power Rating 3 mW
Color Black
Material Plastic
Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, IP65, UL 508
Accessory Type Black Wireless, Batteryless Rope Pull Switch Transmitter, Rope Pull Type
Bezel Material plastic
Ik Degree Of Protection IK05 IEC 50102
Emission Power 3 mW
Ambient Air Temperature For Storage -40-70°C
Max Power Consumption In W 1 mW
Maximum Sensing Distance 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Ambient Air Temperature For Operation -25-70°C
Acquisition Time 2 ms
Device Short Name XB5R
Number Of Channels 16
Ip Degree Of Protection IP66 IEC 60529 outdoor)
Product Certifications CCC || BT 2006/95/EC || CSA || UL || C-tick || GOST
Vibration Resistance 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Mechanical Robustness free fall resistance 1000 mm EN/IEC 60068-2-32
Communication Port Protocol Zigbee green power 2.4 GHz IEEE 802.15.4
Transmission Frequency 2405 MHz
Radio Agreement ANATEL || ARIB T66 || FCC || ICASA || RSS || SRRC
Fixing Mode by screw 1.8-2.2 N.m
Level Or Class 5M00G7W
Operating Position any position
Mechanical Durability 1000000 cycles
Shock Resistance 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Relative Humidity 95-95 % -25-70°C without condensation
Antenna Type omnidirectional
Mounting Mode between 2 ropes || panel-mounted
Electromagnetic Compatibility electrostatic discharge immunity test 8 kV in free air (in insulating parts)) || electrostatic discharge immunity test 6 kV on contact (on metal parts)) || susceptibility to electromagnetic fields 10 V/m 80 to 2000 MHz) || susceptibility to electromagnetic fields 3 V/m 80 to 2700 MHz, distance = 20 m) || immunity for industrial environments || radiated emission
Nema Degree Of Protection NEMA 4X outdoor
Pulling Force 45-1000 N
Response Time < 2 ms
Antenna Gain 0 dBi
Product Or Component Type wireless and batteryless transmitter
Modulation Technique O-QPSK
Compatible Product Type Automatic Doors, Rope Pull Switches
Compatible with Series XB4R, XB5R

Description

Transmitter, For Use With Harmony Series, Features Dust Resistant, Impact Resistant, No Batteries Needed, Vibration Resistant, Water Resistant, Wireless
