  15. Pilot Light Head, Green, 22mm

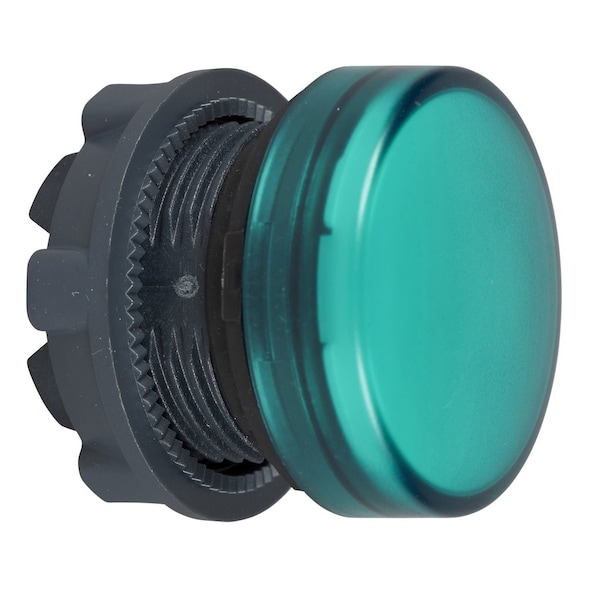

Schneider Electric Pilot Light Head, Green, 22mm ZB5AV03 - main

Pilot Light Head, Green, 22mm

  • Mfr # ZB5AV03

  • Zoro # G2477641

product price: $7.55
/ea

Key Features

Material
Plastic
Lens Type
Smooth
Color
Green
Size
22 mm
NEMA Rating
13, 4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AV03
Zoro #
G2477641
UPC #
785901355106
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Width
29 mm
Cad Overall Depth
31 mm
Mounting Diameter
22 mm
Cad Overall Height
29 mm
Compatible Panel Cutout Diameter
22 mm

Details

Item
Pilot Light Head
Material
Plastic
Lens Type
Smooth
Color
Green
NEMA Rating
13, 4X
Shape
Round
Suggested Lamp Type
Mfr. Series BA9 Lamp Module
Standards
CSA C22-2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 508
Body Material
Plastic
IP Rating
IP66, IP67, IP69, IP69K
Lens Material
Plastic
For Use With
Schneider BA9 Light Modules
Basic Material
Plastic
Lamp Type
Incandescent, LED, Neon
Product Type
Pilot Light Head
Bezel Material
dark grey plastic
Product Compatibility
BA 9s
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Electrical Composition Code
P3 front mounting BA 9s || P4 front mounting BA 9s and transformer || PF2 front mounting BA 9s
Operator Additional Information
with plain lens
Overvoltage Category
class II IEC 60536
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Head Type
standard
Product Or Component Type
head for pilot light
Protective Treatment
TH
Cap/Operator Or Lens Colour
green
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Ambient Air Temperature For Operation
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Short Name
ZB5
Ik Degree Of Protection
IK05 IEC 50102
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Device Presentation
basic element
Shape Of Signaling Unit Head
round
NEMA Enclosure Rating
13, 4X
Light Head Material
Plastic
Compatible with Series
XB5
Compatible Lamp Type
BA9 Lamp Module

Description

Pilot Light Head, Size 22 mm, Color Green, Shape Round, Lens Type Smooth, Basic Material Plastic, NEMA Rating 13, 4X, Lamp Type Incandescent, LED, Neon, Lens Material Plastic, Body Material Plastic, Suggested Lamp Type Mfr. Series BA9 Lamp Module, IP Rating IP66, IP67, IP69, IP69K, Standards CSA C22-2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 508
