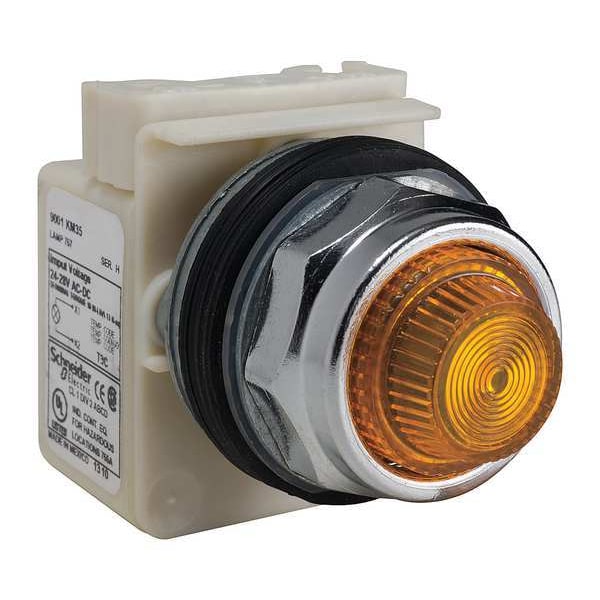

Schneider Electric Pilot Light, Incan, Amber, 24-28VAC/DC 9001KP35A31 - main

Pilot Light, Incan, Amber, 24-28VAC/DC

  • Mfr # 9001KP35A31

  • Zoro # G6342542

product price: $125.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC/DC
Color
Amber
Action
Normal
Lamp Type
Incandescent
Shape
Round
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KP35A31
Zoro #
G6342542
UPC #
785901032212
Country of Origin
Mexico

Dimensions

Size
30 mm
Manufacturer Warranty Length
18 mo
Overall Height
3.02 in
Overall Width
2.13 in
Overall Depth
1.62 in
Panel Cutout Diameter
30 mm

Details

Item
Pilot Light
Voltage
24V AC/DC
Color
Amber
Action
Normal
Lamp Type
Incandescent
Shape
Round
Terminal Connection
Screw Clamp
Lens Material
Polycarbonate
Bezel
Metal
Lens Type
Fresnel
Lamp Module Type
Full Voltage
Basic Material
Metal
Lamp Voltage
24V AC/DC
Body Material
Zinc Die Cast
Standards
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Replacement Lamps
2FMP7
IP Rating
IP66
Body Finish
Chrome Plated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Lamp Color
Amber
Lamp Voltage - Maximum
28 V
Includes Lens
Lens Included
Voltage Rating - Maximum
28 V AC/DC
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Includes Push-To-Test
No Push-To-Test Included
Series
9001K
Lens Color
Amber
Includes Lamp Module
Lamp Module Included

Description

Pilot Light, Voltage 24V AC/DC, Color Amber, Lamp Type Incandescent, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Fresnel, Lamp Voltage 24V AC/DC, Replacement Lamps 2FMP7, Body Material Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
