Schneider Electric

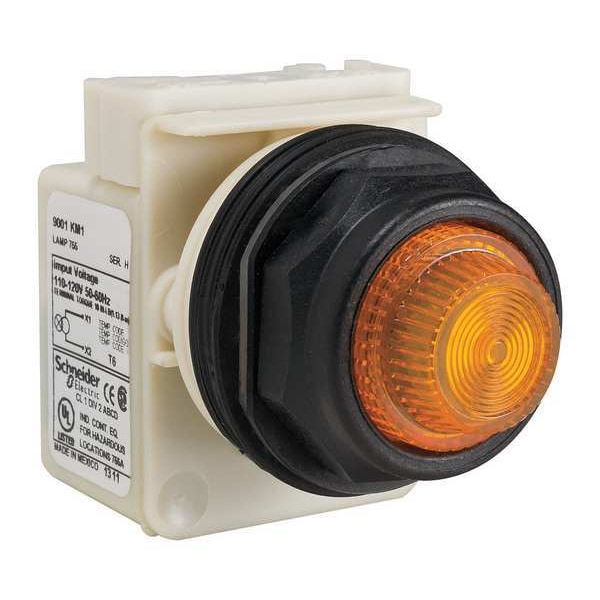

Pilot Light, Incan, Amber, Fresnel Lens

product price: $102.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 120V AC
  • Color Amber
  • Action Normal
  • Lamp Type Incandescent
  • Shape Round
See all product information

Product Information

Dimensions

Size 30 mm
Overall Width 2.13 in
Overall Depth 1.65 in
Overall Height 2.76 in
Panel Cutout Diameter 30 mm
Manufacturer Warranty Length 18 mo

Details

Item Pilot Light
Voltage 120V AC
Color Amber
Action Normal
Lamp Type Incandescent
Shape Round
Terminal Connection Screw Clamp
Lens Material Polycarbonate
Bezel Plastic
Lens Type Fresnel
Lamp Module Type Transformer
Basic Material Plastic
Body Material Plastic
Lamp Voltage 6V AC/DC
NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6
IP Rating IP66
Replacement Lamps 4VCW2
Standards REACH, RoHS, WEEE
Hz 50/60 Hz
Hazardous Location Specification Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Series 9001SK
Resistance Properties Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Lamp Color Amber
Includes Lamp Module Lamp Module Included
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6
Voltage Rating - Maximum 120 V AC
Lamp Voltage - Maximum 6 V AC/DC
Includes Push-To-Test No Push-To-Test Included
Lens Color Amber
Includes Lens Lens Included

Description

Pilot Light, Voltage 120V AC, Color Amber, Lamp Type Incandescent, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Transformer, Basic Material Plastic, Lens Type Fresnel, Lamp Voltage 6V AC/DC, Replacement Lamps 4VCW2, Body Material Plastic, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Standards REACH, RoHS, WEEE
