Schneider Electric

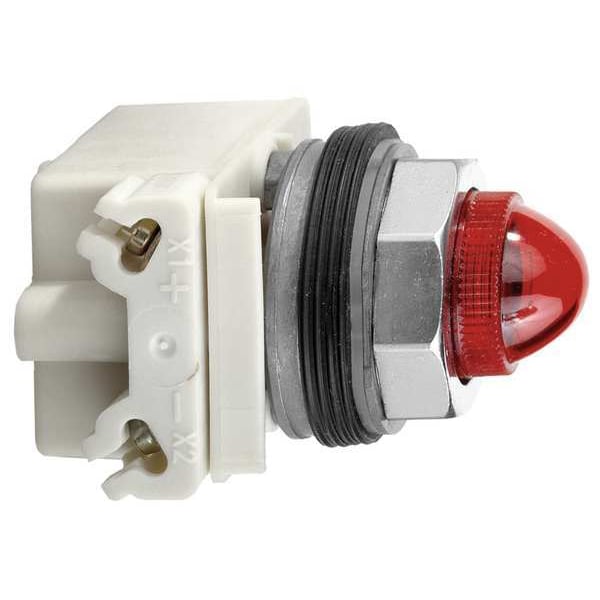

Pilot Light, Incan, Red, 120VAC/DC

product price: $99.79
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 120V AC
  • Color Red
  • Lamp Type Incandescent
  • Shape Round
  • Terminal Connection Screw Clamp
See all product information

Product Information

Dimensions

Size 30 mm
Overall Depth 1.65 in
Manufacturer Warranty Length 18 mo
Panel Cutout Diameter 30 mm
Overall Height 2.76 in
Overall Width 2.13 in

Details

Item Pilot Light
Voltage 120V AC
Color Red
Lamp Type Incandescent
Shape Round
Terminal Connection Screw Clamp
Lens Material Polycarbonate
Bezel Metal
Lens Type Domed
Lamp Module Type Full Voltage
Basic Material Metal
Lamp Voltage 120V AC
Standards REACH, RoHS, UL 508, WEEE
Replacement Lamps 4VCW4
NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6
IP Rating IP66
Body Material Zinc Die Cast
Lamp Color Red
Body Finish Chrome Plated
Includes Lamp Module Lamp Module Included
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 6
Lens Color Red
Voltage Rating - Maximum 120 V AC/DC
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Includes Push-To-Test No Push-To-Test Included
Includes Lens Lens Included
Lamp Voltage - Maximum 120 V AC
Hazardous Location Specification Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Series 9001K

Description

Pilot Light, Voltage 120V AC, Color Red, Lamp Type Incandescent, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Domed, Lamp Voltage 120V AC, Replacement Lamps 4VCW4, Body Material Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Standards REACH, RoHS, UL 508, WEEE
