Schneider Electric

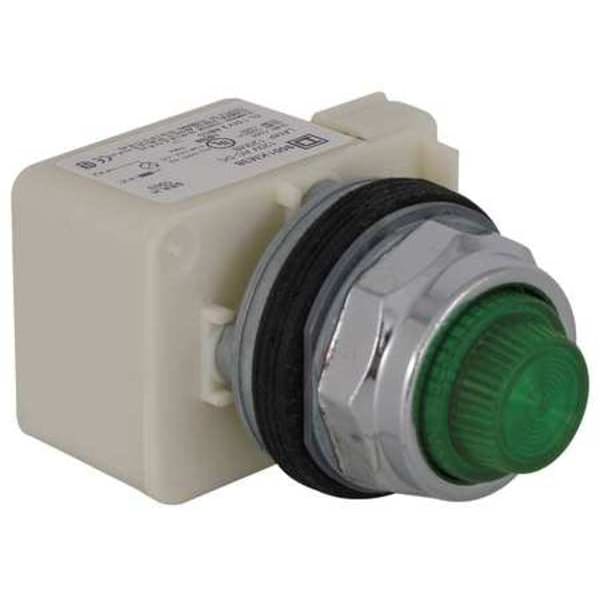

Pilot Light, Incandescent Full Voltage, GR

product price: $84.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 120V AC
  • Color Green
  • Lamp Type Incandescent
  • Shape Round
  • Terminal Connection Pressure Plate
See all product information

Product Information

Dimensions

Size 30 mm
Panel Cutout Diameter 30 mm

Details

Item Pilot Light
Voltage 120V AC
Color Green
Lamp Type Incandescent
Shape Round
Terminal Connection Pressure Plate
Lens Material Plastic
Lens Type Fresnel
Lamp Module Type Full Voltage
Basic Material Metal
Standards CE, CSA, UL Listed
Replacement Lamps 4VCW4
Lamp Voltage 120V AC
IP Rating IP66
Body Material Zinc Die Cast
NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6
Includes Head, Light Module and Lamp
Lamp Color Green
Series 9001K
Includes Lens Lens Included
Includes Lamp Module Lamp Module Included
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 6
Lens Color Green
Body Finish Chrome Plated

Description

Pilot Light, Voltage 120V AC, Color Green, Lamp Type Incandescent, Shape Round, Terminal Connection Pressure Plate, Lens Material Plastic, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Fresnel, Lamp Voltage 120V AC, Replacement Lamps 4VCW4, Body Material Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Includes Head, Light Module and Lamp, Standards CE, CSA, UL Listed
