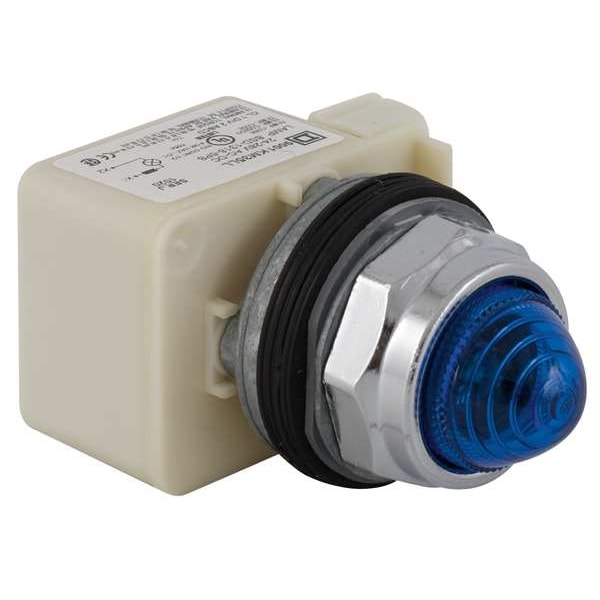

Schneider Electric Pilot Light, LED, 24V, 30mm, Chrome, BL 9001KP35LLL9 - main

Pilot Light, LED, 24V, 30mm, Chrome, BL

  • Mfr # 9001KP35LLL9

  • Zoro # G3468315

product price:  $140.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC/DC
Color
Blue
Lamp Type
LED
Shape
Round
Terminal Connection
Screw Clamp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001KP35LLL9
Zoro #
G3468315
UPC #
785901601968
Country of Origin
Mexico

Dimensions

Size
30 mm
Overall Depth
1.65 in
Overall Width
2.13 in
Manufacturer Warranty Length
18 mo
Overall Height
2.76 in
Panel Cutout Diameter
30 mm

Details

Item
Pilot Light
Voltage
24V AC/DC
Color
Blue
Lamp Type
LED
Shape
Round
Terminal Connection
Screw Clamp
Lens Material
Polycarbonate
Bezel
Metal
Lens Type
Domed
Lamp Module Type
Full Voltage
Basic Material
Metal
Includes
Light Module and LED Lamp
Standards
REACH, RoHS, UL 508, WEEE
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
IP Rating
IP66
Lamp Voltage
24V AC/DC
Body Material
Zinc Die Cast
Includes Lamp Module
Lamp Module Included
Includes Push-To-Test
No Push-To-Test Included
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Body Finish
Chrome Plated
Lamp Color
Blue
Series
9001K
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Lens Color
Blue
Includes Lens
Lens Included
Lamp Voltage - Maximum
28 V AC/DC
Voltage Rating - Maximum
28 V AC/DC

Description

Pilot Light, Voltage 24V AC/DC, Color Blue, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Domed, Lamp Voltage 24V AC/DC, Replacement Lamps N/A, Body Material Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Includes Light Module and LED Lamp, Standards REACH, RoHS, UL 508, WEEE
