Schneider Electric

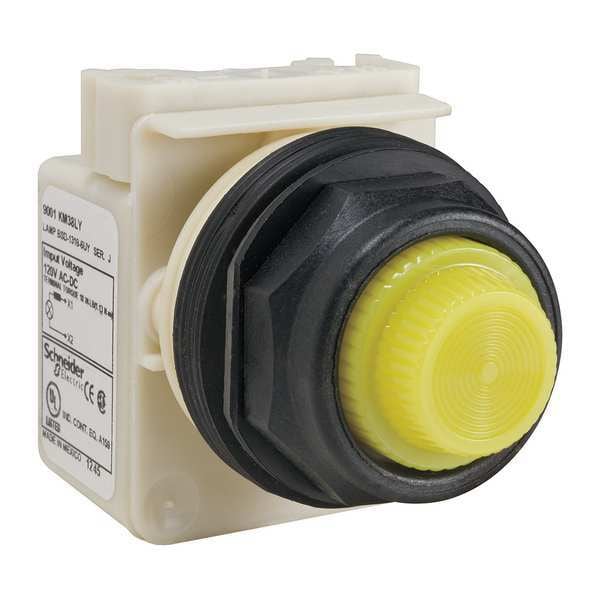

Pilot Light, LED, Yellow, 120V, Fresnel Lens

product price: $123.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 120V AC
  • Color Yellow
  • Lamp Type LED
  • Shape Round
  • Terminal Connection Screw Clamp
See all product information

Product Information

Dimensions

Size 30 mm
Manufacturer Warranty Length 18 mo
Overall Height 2.76 in
Overall Depth 1.65 in
Panel Cutout Diameter 30 mm
Overall Width 2.13 in

Details

Item Pilot Light
Voltage 120V AC
Color Yellow
Lamp Type LED
Shape Round
Terminal Connection Screw Clamp
Lens Material Polycarbonate
Lens Type Fresnel
Lamp Module Type Full Voltage
Basic Material Plastic
Standards REACH, RoHS, WEEE
Body Material Plastic
Lamp Voltage 120V AC
IP Rating IP66
NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6
Lamp Color Yellow
Includes Lens Lens Included
Voltage Rating - Maximum 120 V AC/DC
Lens Color Yellow
Resistance Properties Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Lamp Voltage - Maximum 120 V
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6
Hazardous Location Specification Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Includes Push-To-Test No Push-To-Test Included
Includes Lamp Module Lamp Module Included
Series 9001SK

Description

Pilot Light, Voltage 120V AC, Color Yellow, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type Fresnel, Lamp Voltage 120V AC, Replacement Lamps N/A, Body Material Plastic, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Standards REACH, RoHS, WEEE
