Schneider Electric

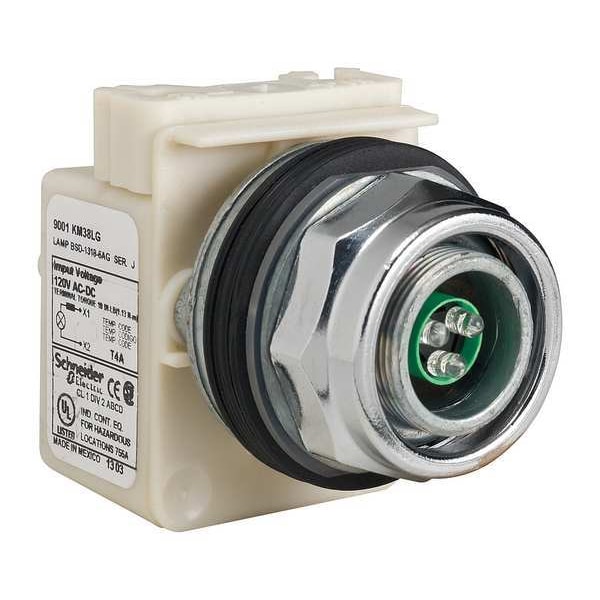

Pilot Light, LED, Green, 120VAC/DC, No Lens

product price: $96.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 120V AC
  • Color Green
  • Action Normal
  • Lamp Type LED
  • Shape Round
See all product information

Product Information

Dimensions

Size 30 mm
Manufacturer Warranty Length 18 mo
Overall Depth 1.62 in
Overall Width 2.13 in
Panel Cutout Diameter 30 mm
Overall Height 2.43 in

Details

Item Pilot Light
Voltage 120V AC
Color Green
Action Normal
Lamp Type LED
Shape Round
Terminal Connection Screw Clamp
Lens Material No Lens Included
Bezel Metal
Lens Type No Lens Included
Lamp Module Type Full Voltage
Basic Material Metal
Lamp Voltage 120V AC
Body Material Zinc Die Cast
NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6
Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
IP Rating IP66
Body Finish Chrome Plated
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 6
Series 9001K
Includes Lamp Module Lamp Module Included
Lamp Voltage - Maximum 120 V
Lamp Color Green
Voltage Rating - Maximum 120 V AC/DC
Includes Push-To-Test No Push-To-Test Included
Includes Lens No Lens Included
Lens Color No Lens Included
Hazardous Location Specification Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2

Description

Pilot Light Complete, Voltage 120V AC, Color Green, Lamp Type LED, Shape Round, Terminal Connection Pressure Plate, Lens Material Plastic, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Fresnel, Lamp Voltage 120V AC, Replacement Lamps N/A, Body Material Chrome Plated Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating 66, Standards CE, CSA, UL
