Schneider Electric

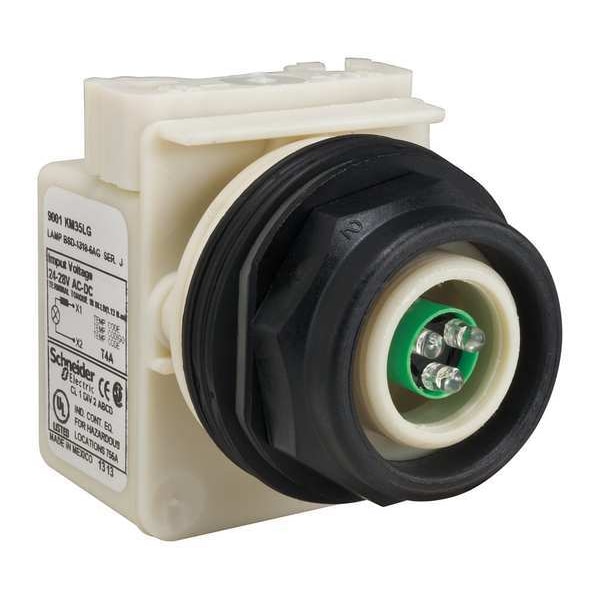

Pilot Light, LED, Green, No Lens

product price: $125.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24V AC/DC
  • Color Green
  • Lamp Type LED
  • Shape Round
  • Terminal Connection Screw Clamp
See all product information

Product Information

Dimensions

Size 30 mm
Overall Height 2.76 in
Overall Width 2.13 in
Manufacturer Warranty Length 18 mo
Overall Depth 1.65 in
Panel Cutout Diameter 30 mm

Details

Item Pilot Light
Voltage 24V AC/DC
Color Green
Lamp Type LED
Shape Round
Terminal Connection Screw Clamp
Lens Material No Lens Included
Bezel Plastic
Lens Type No Lens Included
Lamp Module Type Full Voltage
Basic Material Plastic
Body Material Plastic
IP Rating IP66
NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6
Lamp Voltage 24V AC/DC
Standards REACH, RoHS, UL 508, WEEE
Series 9001SK
Includes Push-To-Test No Push-To-Test Included
Hazardous Location Specification Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Includes Lamp Module Lamp Module Included
Voltage Rating - Maximum 28 V AC/DC
Includes Lens No Lens Included
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 4X
Lens Color No Lens Included
Lamp Color Green
Lamp Voltage - Maximum 28 V AC/DC

Description

Pilot Light, Voltage 24V AC/DC, Color Green, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material No Lens Included, 30 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type No Lens Included, Lamp Voltage 24V AC/DC, Replacement Lamps N/A, Body Material Plastic, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Standards REACH, RoHS, UL 508, WEEE
