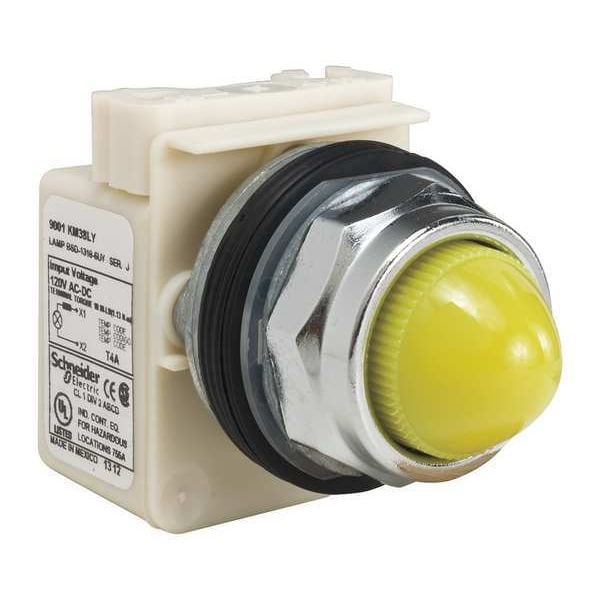

Schneider Electric Pilot Light, LED, Yellow, 120V, Domed Lens 9001KP38LYY9 - main

Pilot Light, LED, Yellow, 120V, Domed Lens

  • Mfr # 9001KP38LYY9

  • Zoro # G6355587

product price: $133.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Color
Yellow
Action
Normal
Lamp Type
LED
Shape
Round
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KP38LYY9
Zoro #
G6355587
UPC #
785901849537
Country of Origin
Mexico

Dimensions

Size
30 mm
Overall Depth
1.62 in
Overall Width
2.13 in
Overall Height
3 in
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
30 mm

Details

Item
Pilot Light
Voltage
120V AC
Color
Yellow
Action
Normal
Lamp Type
LED
Shape
Round
Terminal Connection
Screw Clamp
Lens Material
Polycarbonate
Bezel
Metal
Lens Type
Domed
Lamp Module Type
Full Voltage
Basic Material
Metal
Body Material
Zinc Die Cast
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
IP Rating
IP66
Lamp Voltage
120V AC
Standards
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
Includes Push-To-Test
No Push-To-Test Included
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Includes Lamp Module
Lamp Module Included
Lamp Voltage - Maximum
120 V
Lamp Color
Yellow
Series
9001K
Includes Lens
Lens Included
Body Finish
Chrome Plated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Lens Color
Yellow
Voltage Rating - Maximum
120 V AC/DC

Description

Pilot Light, Voltage 120V AC, Color Yellow, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Domed, Lamp Voltage 120V AC, Replacement Lamps N/A, Body Material Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
