Shop All Indicator Lights
Schneider Electric

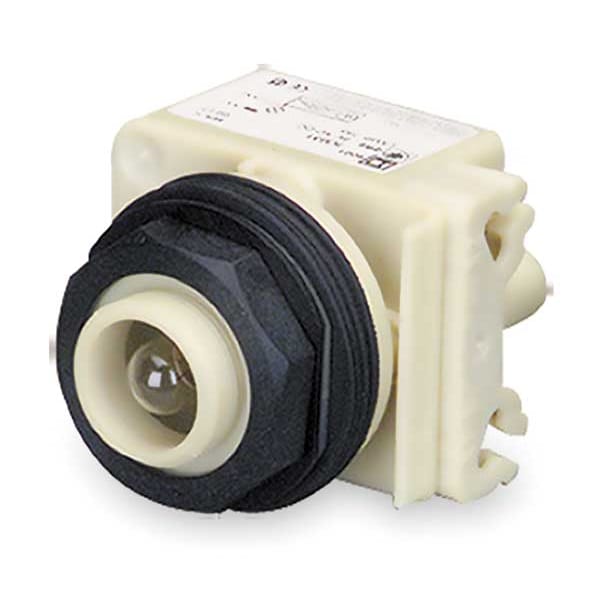

Pilot Light, No Lens, Incandescent

original price: $85.79
5% off
new price: $81.49
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24V AC/DC
  • Action Normal
  • Lamp Type Incandescent
  • Shape Round
  • Terminal Connection Screw Clamp
See all product information

Product Information

Dimensions

Size 30 mm
Mounting Diameter 1.18 in (30 mm)
Manufacturer Warranty Length 18 mo
Overall Depth 1.62 in
Overall Width 2.13 in
Panel Cutout Diameter 30 mm
Overall Height 2.43 in

Details

Item Pilot Light
Voltage 24V AC/DC
Action Normal
Lamp Type Incandescent
Shape Round
Terminal Connection Screw Clamp
Lens Material No Lens Included
Bezel Plastic
Lens Type No Lens Included
Lamp Module Type Full Voltage
Basic Material Plastic
Replacement Lamps 2FMP7
Body Material Plastic
IP Rating IP66
NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6
Lamp Voltage 24V AC/DC
Standards REACH, RoHS, WEEE
IP Degree Of Protection IP66
Light Source Incandescent bulb
Protective Treatment TC
Light Block Supply Full voltage 24 V; Full voltage 28 V
Bulb Base BA 9s
Cap/Operator Or Lens Color Without cap
Product Or Component Type Head for pilot light
Rated Supply Voltage 24 to 28 V
Hazardous Location Specification Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Includes Push-To-Test No Push-To-Test Included
Includes Lens No Lens Included
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6
Lamp Voltage - Maximum 24 V AC/DC
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Voltage Rating - Maximum 28 V AC/DC
Lens Color No Lens Included
Includes Lamp Module Lamp Module Included
Series 9001SK

Description

Pilot Light, Voltage 24V AC/DC, Lamp Type Incandescent, Shape Round, Terminal Connection Screw Clamp, Lens Material No Lens Included, 30 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type No Lens Included, Lamp Voltage 24V AC/DC, Replacement Lamps 2FMP7, Body Material Plastic, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Standards REACH, RoHS, WEEE
