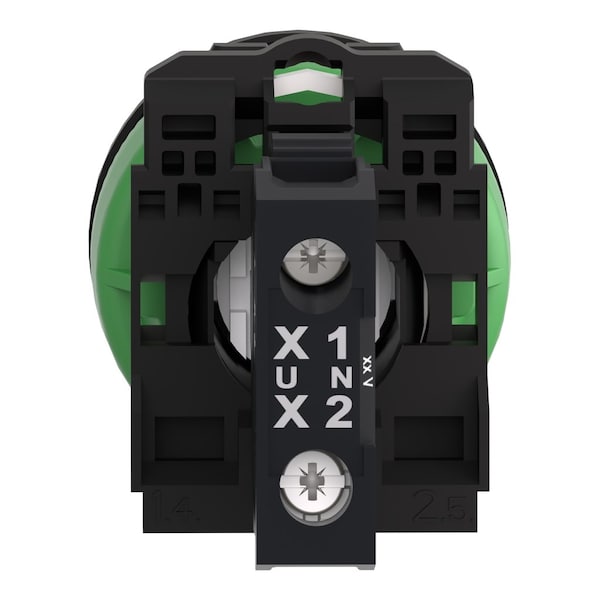

Schneider Electric Pilot Light, Orange, 30mm, LED XB5FVG5 - main

Pilot Light, Orange, 30mm, LED

  • Mfr # XB5FVG5

  • Zoro # G0196545

product price: $53.75
/ea

Key Features

Voltage
110 to 120V AC
Color
Orange
Lamp Type
LED
Shape
Round
Contact Form
(X1-X2)PL
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB5FVG5
Zoro #
G0196545
UPC #
-
Country of Origin
France

Dimensions

Size
30 mm
Width
36.6 mm
Height
42 mm
Length
55 mm
Depth
2.17 in (55 mm)
Mounting Diameter
1.20 in (30.5 mm)
Panel Cutout Diameter
30 mm
Overall Width
1.44 in
Overall Height
1.65 in
Overall Depth
2.17 in

Details

Item
Pilot Light
Voltage
110 to 120V AC
Color
Orange
Lamp Type
LED
Shape
Round
Contact Form
(X1-X2)PL
Terminal Connection
Screw Clamp
Lens Material
Plastic
Bezel
Dark Grey Plastic
Lens Type
Smooth
Lamp Module Type
Full Voltage
Basic Material
Plastic
IP Rating
IP66, IP67, IP69, IP69K
Lamp Voltage
110 to 120 V AC
Average Life
100000 hr
Type
Steady Signal
Replacement Lamps
Integrated
Standards
CSA, REACH, RoHS, UL Listed, WEEE
Body Material
Plastic
NEMA Rating
13, 4X
Vibration Resistance
5 gn 12 to 500 Hz)IEC 60068-2-6
Light Source
Universal LED
Current Consumption
14 mA
Resistance To High Pressure Washer
1015.26 psi (7000000 Pa) 131°F (55°C) 0.1 m
Service Life
100000 h at rated voltage and 25°C
Bezel Material
Dark Gray plastic
Product Certifications
UL Listed; CSA
Shock Resistance
50 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Head Type
Built-in-flush
Resistance To Fast Transients
2 kV IEC 61000-4-4
Resistance To Electromagnetic Fields
9.14 V/m (10 V/m) IEC 61000-4-3
Bulb Base
Integral LED
Surge Withstand
1 kV IEC 61000-4-5
Supply Voltage Limits
100 to 132 V AC
Signalling Type
Steady
Overvoltage Category
Class II IEC 60536
NEMA Degree Of Protection
NEMA 13; NEMA 4X
Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Rated Supply Voltage
110 to 120 V AC 50/60 Hz
Protective Treatment
TH
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2
IP Degree Of Protection
IP66 IEC 60529; IP67 IEC 60529; IP69 IEC 60529; IP69K ISO 20653
Device Presentation
Complete product
Connections - Terminals
Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end IEC 60947-1
Electromagnetic Compatibility
Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electromagnetic emission class B conforming to IEC 55011
Compatibility Code
XB5
IK Degree Of Protection
IK03 IEC 50102
Electromagnetic Emission
Class B IEC 55011
Ambient Air Temperature For Operation
-40 to 158°F (-40 to 70°C)
Rated Insulation Voltage
250 V 3)IEC 60947-1
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Lamp Color
Orange
Includes Lamp Module
Lamp Module Included
Resistance Properties
Dust Resistant, Shock Resistant, Waterproof
Lamp Voltage - Maximum
120 V AC
Includes Lens
Lens Included
NEMA Enclosure Rating
13, 4X
Includes Push-To-Test
No Push-To-Test Included
Series
XB5
Lens Color
Orange
Voltage Rating - Maximum
120 V AC

Description

Pilot Light, Voltage 110 to 120V AC, Color Orange, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Plastic, 30 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type Smooth, Lamp Voltage 110 to 120 V AC, Replacement Lamps Integrated, Body Material Plastic, NEMA Rating 13, 4X, IP Rating IP66, IP67, IP69, IP69K, Standards CSA, REACH, RoHS, UL Listed, WEEE
