Shop NSI TORK

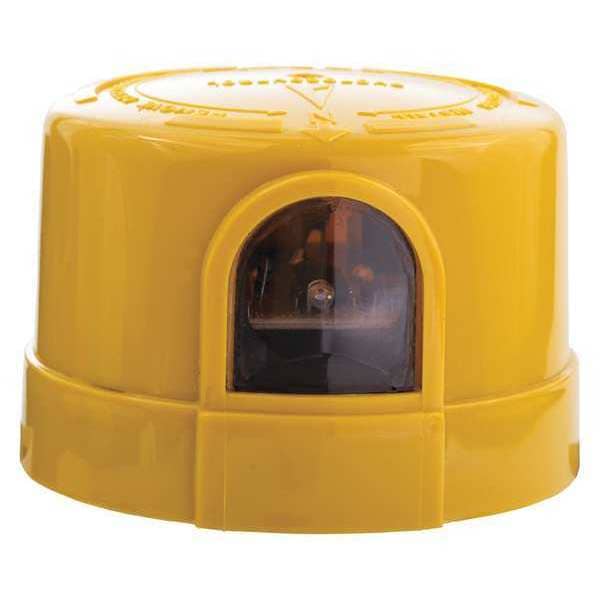

LED Photocontrol, 1,000 W, Yellow, 5 sec Max, 3 sec Min

  • Mfr # 2008B

  • Zoro # G7686281

product price:
$
41.49
/ea

Key Features

Compatible Lighting
LED
AC Operating Voltage
400-550V AC
Ballast Current - Maximum
4 A
Incandescent Current - Maximum
0.083333333
Wattage - Maximum
1,000 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2008B
Zoro #
G7686281
UPC #
786261620170
Country of Origin
China

Dimensions

Width
3 3/16 in
Length
3 3/16 in
Depth
2 3/16 in
Manufacturers Warranty Length
8 yr
Overall Height
3.19 in
Dimensions
H=2.187 - W=3.187
Overall Depth
2.19 in
Overall Width
3.19 in

Details

Item
Photocontrol
Compatible Lighting
LED
AC Operating Voltage
400-550V AC
Ballast Current - Maximum
4 A
Incandescent Current - Maximum
0.083333333
Wattage - Maximum
1,000 W
Foot Candles On
1.5
Time Delay - Maximum
5 sec
Foot Candles Off
2.25
Time Delay - Minimum
3 sec
Housing Material
Polycarbonate
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Yellow
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Description/Special Features
Instant On/Off Switching
Includes
Gasket
Standards
ANSI C136.10-2010, CSA TIL A15, UL 773
Setting
Dusk to Dawn
Enclosure Type
Polycarbonate
Contact Form
SPST
Sensitivity
Turn On Is 1.5 Foot Candle - Turn Off to Turn On is 1.5:1 Average
Application
Street-Highway Lighting
Timing Range
Instant On
Sensor Type
Molded Sealed IR
Frequency Rating
50-60 Hz
Type
Instant Response Turn Lock Photocontrol
Series
5400A
On Illumination - Maximum
1.5 fc
Resistance Properties
Weather Resistant
Mounting Style
Turn Lock
Indoor/Outdoor Usage
Outdoor
Off Illumination - Maximum
2.25 fc
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
Features
510J MOV Surge Arrestor, 11 in 16 GA Hookup Wires

Description

Photocontrol, Mounting Turn-Lock, Voltage 400 to 550V AC, Max. Wattage 1,000, Max. Incandescent Amps 2 A, Max. Ballast Amps 4 A, 1.5 Foot Candles On, 2.25 Foot Candles Off, Color Yellow, Temp. Range -40 Degrees to 158 Degrees F, Length 3 3/16 in, Width 3 3/16 in, Depth 2 3/16 in, Enclosure Type Polycarbonate, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards ANSI C136.10-2010, CSA TIL A15, UL 773, Includes Gasket
