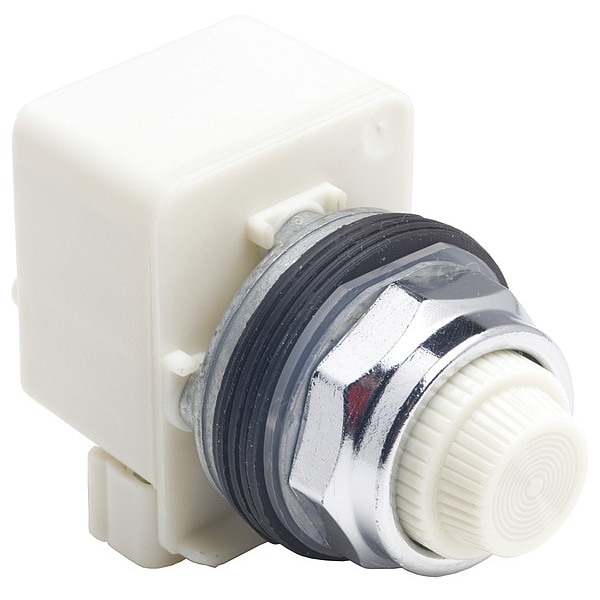

Pilot Light, White, 30mm, LED

Mfr # 9001KP38LWW31
Zoro # G3614458

142.99

Free Shipping & Returns

Key Features

Voltage

120V AC

Color

White

Action

Normal

Lamp Type

LED

Shape

Round

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 9001KP38LWW31
Zoro #: G3614458
UPC #: 785901696469
Country of Origin: Korea, Republic of

Dimensions

Size: 30 mm
Manufacturer Warranty Length: 18 mo
Panel Cutout Diameter: 30 mm
Overall Depth: 1.62 in
Overall Width: 2.13 in
Overall Height: 3.02 in

Details

Item: Pilot Light
Voltage: 120V AC
Color: White
Action: Normal
Lamp Type: LED
Shape: Round
Terminal Connection: Screw Clamp
Lens Material: Polycarbonate
Bezel: Metal
Lens Type: Fresnel
Lamp Module Type: Full Voltage
Basic Material: Metal
NEMA Rating: 1, 12, 13, 2, 3, 3R, 4, 6
IP Rating: IP66
Standards: CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
Body Material: Metal
Series: 9001K
Lamp Voltage - Maximum: 120 V
Includes Lens: Lens Included
Includes Lamp Module: Lamp Module Included
Includes Push-To-Test: No Push-To-Test Included
Voltage Rating - Maximum: 120 V AC/DC
Resistance Properties: Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Lamp Color: White
Body Finish: Chrome Plated
Lens Color: White
NEMA Enclosure Rating: 1, 12, 13, 2, 3, 3R, 4, 6

Description

Pilot Light, Voltage 120V AC, Color White, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Fresnel, Body Material Metal, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
