  13. Plug-In, General Purpose Relay, Square, 10 A, 11, Blade Terminal

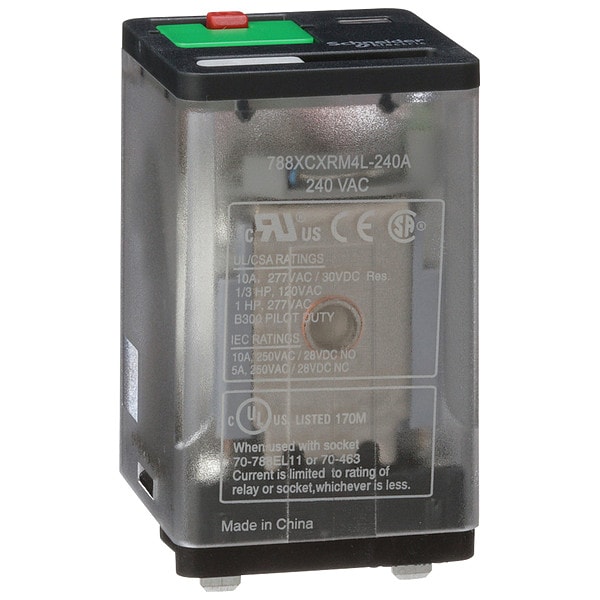

Schneider Electric Plug-In, General Purpose Relay, Square, 10 A, 11, Blade Terminal 788XCXRM4L-240A - main

Plug-In, General Purpose Relay, Square, 10 A, 11, Blade Terminal

  • Mfr # 788XCXRM4L-240A

  • Zoro # G9784214

product price: $22.59
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
11
Coil Voltage
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
788XCXRM4L-240A
Zoro #
G9784214
UPC #
-
Country of Origin
China

Dimensions

Body Height - Relay
2.09 in
Body Depth - Relay
1.38 in
Body Width - Relay
1.4 in
Overall Height - Relay
2.09 in
Overall Depth
2.09 in
Body Height
1.4 in
Body Width
1.38 in
Body Depth
2.09 in
Flat Pin Width
0.189 in
Width
1.38 in (35 mm)
Depth
1.40 in (35.5 mm)
Height
2.09 in (53 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
11
Coil Voltage
240V AC
Current Rating
10 A
Contact Form
3PDT
Contact Rating (AC)
10 A @ 277V, 5 A @ 250V-1 (NC)
Contact Rating (DC)
10 A @ 28V
HP @ 240V
1/2 hp
Mounting - Relay
Plug In
Power Consumption - Relay
3 VA
HP @ 120V
1/3 hp
Status Indicator
LED Indicator
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Base Type - Plug In Relay
Square
Base Type
Square
Contact Rating
10A @ 277VAC/30VDC
Pins
11
Coil Volts
240V AC
AC Contact Rating - Relay
10A @ 277V
Push To Test
Lockable
Number of Pins - Relay
11
DC Contact Rating - Relay
10A @ 28V
Contact Form - Relay
3PDT
Item - Relay
General Purpose Relay
Socket Code
C
Standards
CE Certified, CSA Certified, EAC, UL Listed
Contact Material
Silver Alloy
Socket
Mfr. No. 70-463-1, 70-124-1, 70-124-2, 70-178-1, 70-178-2
Pin Shape
Flat
Horsepower @ 120V AC
1/3 hp
Coil Resistance
6,800 ohm
Weight
2.93 oz
Power Consumption
3 VA
Series
788R Series
Maximum Operating Temperature
131 Degrees F
Motor Rated
Yes
Resistance Properties
Shock-Resistant, Vibration-Resistant
Horsepower @ 240V AC
1/2 hp
Operating Current
10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)
Electrical Operating Durability
100,000
Sealing
Enclosed
Minimum Switching Current
10 mA
Maximum Switching Voltage
250V, 300V
Minimum Operating Temperature
-40 Degrees F
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact
Input Voltage
240V AC
IP Rating
IP40
Response Time
20 msec
Push-To-Test Method
Lockable
Mechanical Operating Durability
5,000,000
Control Circuit Voltage Limits
0.85...1.1 Un AC
Operating Time
20 ms
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Rated Power in HP
0.33 HP 120 V AC; 1 HP 277 V AC
Resistance
6800 Ohm
Electrical Durability
100000 cycles
Mechanical Durability
5000000 cycles
[Ue] rated operational voltage
240 V AC
Product Type
Plug-in electromechanical relay
Vibration Resistance
+/- 1 mm 10 to 35 Hz in operation; 3 gn 35 to 150 Hz in operation
Local Signalling
LED Cover; Flag
Product Certifications
UL; CSA; CE; EAC
Contact Composition
3 NO + 3 NC
Rated Operational Current
10 A at 277 V AC (on resistive load) conforming to UL; 10 A at 30 V DC (on resistive load) conforming to UL; 10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC; 10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC; 5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC; 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC
Control Type
Lockable test button
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Contacts Material
Silver alloy, gold flashed
Shock Resistance
10 gn
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC

Description

General Purpose Relay, Base Shape Square, Coil Voltage 240V AC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 2.09 in, Body Height 1.4 in
