  11. Power plug-in relay, 15 A, 4 CO, with LE, 230V AC Coil Volts, 4 C/O
Shop All Plug-In Relays
Schneider Electric

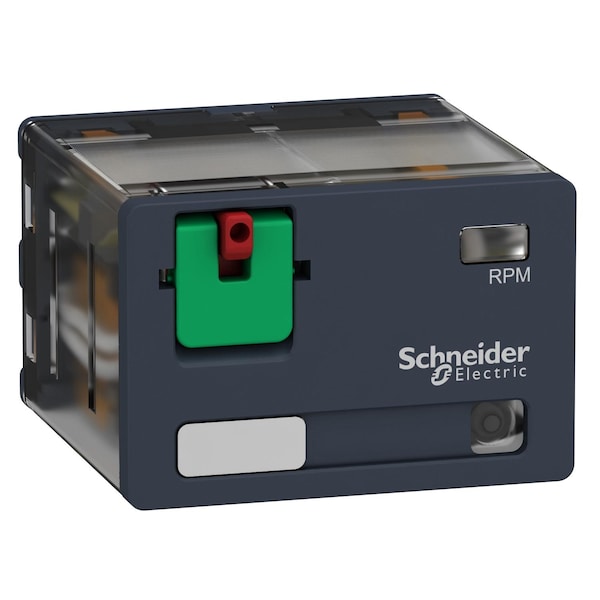

Power plug-in relay, 15 A, 4 CO, with LE, 230V AC Coil Volts, 4 C/O

product price: $16.19
/ea
Sold in multiples of 10 for $161.90
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Coil Volts 230V AC
  • AC Contact Rating - Relay 15A @ 250V AC
  • DC Contact Rating - Relay 15A @ 28V DC
  • Contact Form - Relay 4 C/O
  • Power Consumption - Relay 2.5 VA
See all product information

Product Information

Details

Item Power plug-in relay,15 A,4 CO,with LE
Coil Volts 230V AC
AC Contact Rating - Relay 15A @ 250V AC
DC Contact Rating - Relay 15A @ 28V DC
Contact Form - Relay 4 C/O
Power Consumption - Relay 2.5 VA
Contact Material AgNi
Features Lockable Test Button; Status LED
Standards UL 508; EN/IEC 61810-1; CSA C22.2 No 14; EAC
Series RPM; Power
Switching Voltage 250 V IEC
Coil Resistance 7350 Ohm
Pin Shape flat
Protection Category RT I
Dielectric Strength 1500 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with reinforced; 2000 V AC between poles with basic
Switching Power Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V
Operating Temp. Range -40-55°C
Current Rating 15 A 277 V AC) UL; 15 A 28 V DC) UL; 15 A 250 V AC) NO IEC; 15 A 28 V DC) NO IEC; 7.5 A 250 V AC) NC IEC; 7.5 A 28 V DC) NC IEC
Operating Time 20 ms at nominal voltage
Ambient Air Temperature For Storage -40-85°C
Series Name Power
Average Resistance 7350 Ohm at 20°C +/- 15 %
Device Short Name RPM
Operating Position any position
Mechanical Durability 10000000 cycles
Load Current 15 A 250 V AC, 15 A 28 V DC
[Uc] Control Circuit Voltage 230 V AC 50/60 Hz
Ip Degree of Protection IP40 conforming to IEC 60529
Average Coil Consumption In VA 2.5 60 Hz
Vibration Resistance 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Status Led with
Maximum Switching Capacity 3750 VA, 420 W
Utilisation Coefficient 0.2
Drop-Out Voltage Threshold >= 0.15 Uc AC
Shock Resistance 15 gnin operation, 30 gnnot operating
[Ui] Rated Insulation Voltage 250 V IEC, 300 V CSA, 300 V UL
Ambient Air Temperature For Operation -40-55°C
Minimum Switching Capacity 170 mW 10 mA, 17 V
Product or Component Type plug-in relay
[Uimp] Rated Impulse Withstand Voltage 4 kV 1.2/50µs
Rated Operational Voltage Limits 184...253 V AC
Electrical Durability 100000 cycles resistive
[Ithe] Conventional Enclosed Thermal Current 15 A -40-55°C
Pollution Degree 3
Device Presentation complete product
[Ie] Rated Operational Current 15 A 277 V AC) UL, 15 A 28 V DC) UL, 15 A 250 V AC) NO IEC, 15 A 28 V DC) NO IEC, 7.5 A 250 V AC) NC IEC, 7.5 A 28 V DC) NC IEC
Control Type lockable test button
Range of Product Harmony Electromechanical Relays
Operating Rate <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
Test Levels level A group mounting

Description

This Harmony RPM power plug-in relay has a coil control voltage of 230V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night.
