  13. Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Blade Terminal

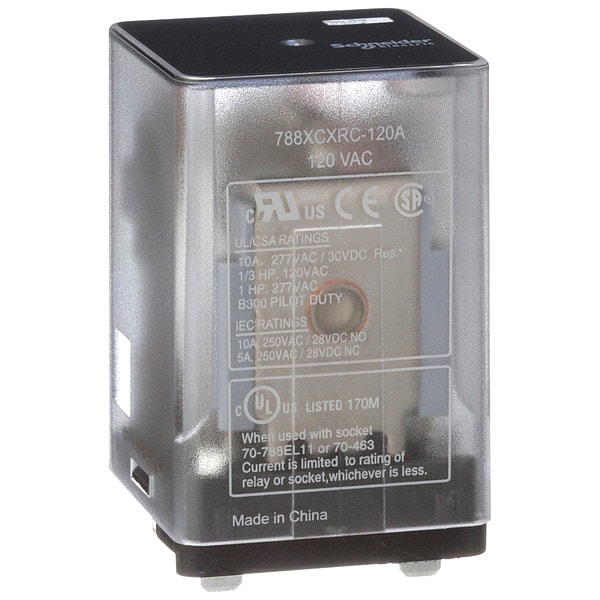

Schneider Electric Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Blade Terminal 788XCXRC-120A - main

CAD Viewer & Download Files

Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Blade Terminal

  • Mfr # 788XCXRC-120A

  • Zoro # G9784311

CAD Available
product price: $18.89
/ea

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
11
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
788XCXRC-120A
Zoro #
G9784311
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.97 in
Body Width
1.38 in
Body Depth
1.97 in
Overall Depth
1.97 in
Flat Pin Width
0.189 in
Body Height
1.97 in
Depth
1.40 in (35.5 mm)
Width
1.38 in (35 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
11
Coil Voltage
120V AC
Current Rating
10 A
Contact Form
3PDT
Contact Rating (AC)
10 A @ 277V, 5 A @ 250V-1
Contact Rating (DC)
10 A @ 28V
Contact Material
Silver Alloy
Standards
CE Certified, CSA Certified, EAC, UL Listed
Status Indicator
Mechanical Flag
Socket Code
C
Power Consumption - Relay
3 VA
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket
Mfr. No. 70-463-1, 70-124-1, 70-124-2, 70-178-1, 70-178-2
Features
Clear Cover
Weight
2.93 oz
Series
788R Series
Minimum Switching Current
10 mA
Sealing
Enclosed
Pin Shape
Flat
Mechanical Operating Durability
5,000,000
Horsepower @ 120V AC
1/3 hp
Motor Rated
Yes
Input Voltage
120V AC
Minimum Operating Temperature
-40 Degrees F
Horsepower @ 240V AC
1/2 hp
IP Rating
IP40
Response Time
20 msec
Operating Current
10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)
Resistance Properties
Shock-Resistant, Vibration-Resistant
Power Consumption
3 VA
Coil Resistance
1,700 ohm
Maximum Switching Voltage
250V, 300V
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact
Electrical Operating Durability
100,000
Push-To-Test Method
Manual Push Test Button
Maximum Operating Temperature
131 Degrees F
Shock Resistance
10 gn
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Control Circuit Voltage Limits
0.85...1.1 Un AC
Operating Time
20 ms
Vibration Resistance
+/- 1 mm 10 to 35 Hz in operation; 3 gn 35 to 150 Hz in operation
Resistance
1700 Ohm
Rated Power in HP
0.33 HP 120 V AC; 1 HP 277 V AC
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Product Certifications
UL; CSA; CE; EAC
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Contact Composition
3 NO + 3 NC
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.97 in, Body Height 1.97 in
