  13. Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Quick Connect

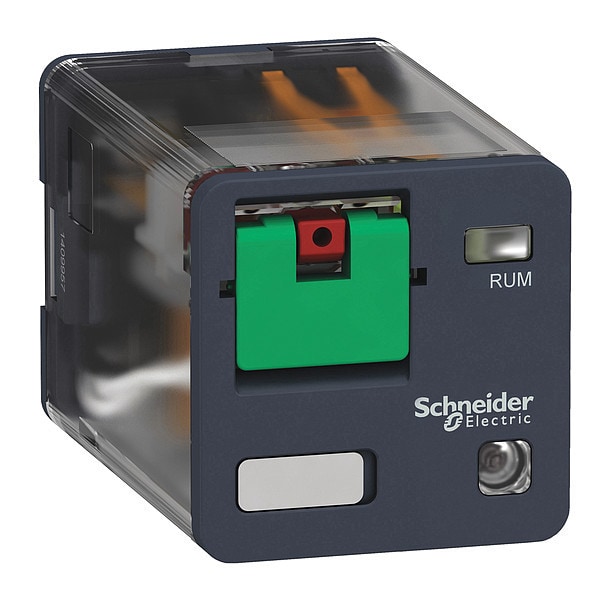

Schneider Electric Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Quick Connect RUMF32F7 - main

CAD Drawings

Download CAD Files

Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Quick Connect

  • Mfr # RUMF32F7

  • Zoro # G2690292

CAD Available
product price: $21.75
/ea

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
11
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RUMF32F7
Zoro #
G2690292
UPC #
785901324379
Country of Origin
China

Dimensions

Overall Height - Relay
2.33 in
Flat Pin Width
0.189 in
Body Height
1.39 in
Body Depth
2.08 in
Body Width
1.37 in
Overall Depth
2.33 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
11
Coil Voltage
120V AC
Current Rating
10 A
Contact Form
3PDT
Contact Rating (AC)
10 A @ 250V
Contact Rating (DC)
10 A @ 28V
Power Consumption - Relay
2.5 VA
Status Indicator
LED and Mechanical Flag
Contact Material
Silver Alloy
Standards
CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed
Features
Lockable Test Button; Status LED
Horsepower @ 120V AC
1/3 hp
Frequency
50/60 Hz
Minimum Switching Current
10 mA
Minimum Operating Temperature
-40 Degrees F
Dielectric Strength
1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Poles with Basic, 2,500V AC Between Coil and Contact with Reinforced
Pin Shape
Flat
Horsepower @ 240V AC
1/2 hp
Maximum Operating Temperature
131 Degrees F
Motor Rated
Yes
IP Rating
IP40
Coil Resistance
1,700 ohm
Weight
3.04 oz
Input Voltage
132V AC
Push-To-Test Method
Lockable Push Test Button
Mechanical Operating Durability
5,000,000
Socket Code
C
Series
Harmony(TM) RUM Series
Maximum Switching Voltage
250V
Response Time
20 msec
Power Consumption
2.5 VA
Electrical Operating Durability
100,000
Resistance Properties
Shock-Resistant, Vibration-Resistant
Sealing
Enclosed
Switching Voltage
250 V IEC
Operating Time
20 ms at nominal voltage
Switching Power
Max 2500 VA/280 W; Min 170 mW 10 mA, 17 V
Protection Category
RT I
Conventional Enclosed Thermal Current
10 A -40 to 131°F (-40 to 55°C)
Resistive Rated Load
10 A 250 V AC; 10 A 28 V DC
Test Levels
Level A group mounting
Minimum Switching Capacity
170 mW 10 mA, 17 V
Drop-Out Voltage Threshold
Greater than or Equal to 0.15 Uc AC
Ambient Air Temperature For Operation
-40 to 131°F (-40 to 55°C)
Maximum Switching Capacity
2500 VA/280 W
Control Circuit Voltage
120 V AC 50/60 Hz
Pollution Degree
3
Control Type
Lockable test button
Ambient Air Temperature For Storage
-40 to 185°F (-40 to 85°C)
Average Coil Resistance
1700 Ohm 20°C +/- 15%
Series Name
Universal
Rated Impulse Withstand Voltage
4 kV 1.2/50 µs)
Operating Position
Any position
Shock Resistance
10 gn 11 ms) in operation IEC 60068-2-27; 10 gn 11 ms) not operating IEC 60068-2-27
Vibration Resistance
3 gn +/- 1 mm 10 to 150 Hz)5 cycles in operation; 4 gn +/- 1 mm 10 to 150 Hz)5 cycles not operating
Average Coil Consumption in VA
3 60 Hz
Utilisation Coefficient
0.2
Contact Type and Composition
3 C/O
Rated Insulation Voltage
250 V IEC; 300 V CSA; 300 V UL
Rated Operational Voltage Limits
96 to 132 V AC
Operating Rate
Less than or Equal to 18000 cycles/hour no-load; Less than or Equal to 1200 cycles/hour under load
Device Presentation
Complete product
Product Certifications
CSA; UL; EAC
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Quick-Connect, Flat Pin Width 0.189 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 250V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 2.08 in, Body Height 1.39 in
