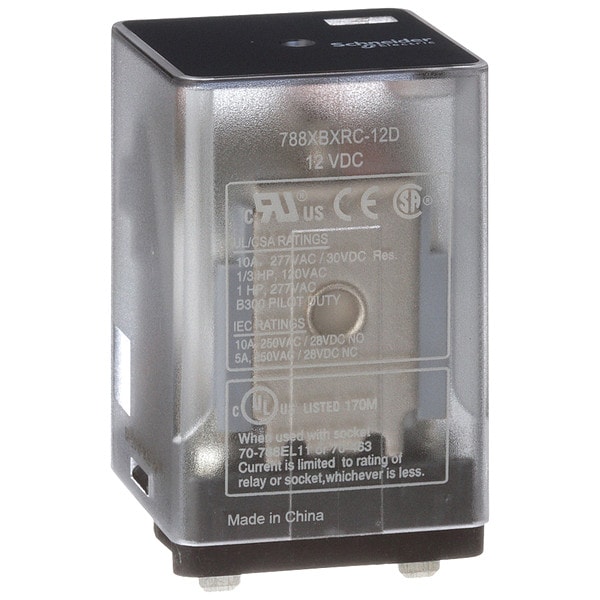

Plug-In, General Purpose Relay, Square, 10 A, 8, Blade Terminal

  • Mfr # 788XBXRC-12D

  • Zoro # G9988736

product price:
$
10.89
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
8
Coil Voltage
12V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
788XBXRC-12D
Zoro #
G9988736
UPC #
-
Country of Origin
China

Dimensions

Body Height - Relay
1.97 in
Body Depth - Relay
1.38 in
Body Width - Relay
1.4 in
Overall Height - Relay
1.97 in
Overall Depth
1.97 in
Body Depth
1.97 in
Flat Pin Width
0.189 in
Body Width
1.38 in
Body Height
1.4 in
Width
1.38 in (35 mm)
Depth
1.40 in (35.5 mm)
Height
1.97 in (50 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
8
Coil Voltage
12V DC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 277V, 5 A @ 250V-1 (NC)
Contact Rating (DC)
10 A @ 28V
Standards
CE Certified, CSA Certified, EAC, UL Listed
Power Consumption - Relay
1.4 W
Mounting - Relay
Plug In
Push To Test
No
Base Type
Square
Pins
8
Features
Clear Cover
DC Contact Rating - Relay
10A @ 28V
AC Contact Rating - Relay
10A @ 277V
Contact Form - Relay
DPDT
Coil Volts
12V DC
Contact Rating
10A @ 277VAC/30VDC
Socket
Mfr. No. 70-463-1, 70-124-1, 70-124-2, 70-178-1, 70-178-2
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Base Type - Plug In Relay
Square
Socket Code
C
HP @ 120V
1/3 hp
Number of Pins - Relay
8
Contact Material
Silver Alloy
Item - Relay
General Purpose Relay
Status Indicator
Mechanical Flag
HP @ 240V
1/2 hp
Resistance Properties
Shock-Resistant, Vibration-Resistant
Minimum Operating Temperature
-40 Degrees F
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact
Input Voltage
12V DC
Coil Resistance
120 ohm
Series
788R Series
Horsepower @ 240V AC
1/2 hp
Electrical Operating Durability
100,000
Sealing
Enclosed
Pin Shape
Flat
Minimum Switching Current
10 mA
Operating Current
10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)
Power Consumption
1.4 W
Weight
2.93 oz
Horsepower @ 120V AC
1/3 hp
Push-To-Test Method
No Button
Response Time
20 msec
IP Rating
IP40
Motor Rated
Yes
Mechanical Operating Durability
5,000,000
Maximum Switching Voltage
250V, 300V
Maximum Operating Temperature
131 Degrees F
Contact Composition
2 NC + 2 NO
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Local Signalling
Flag Cover
[Ue] rated operational voltage
12 V DC
Rated Operational Current
10 A at 277 V AC (on resistive load) conforming to UL; 10 A at 30 V DC (on resistive load) conforming to UL; 10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC; 10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC; 5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC; 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC
Vibration Resistance
+/- 1 mm 10 to 35 Hz in operation; 3 gn 35 to 150 Hz in operation
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Shock Resistance
10 gn
Rated Power in HP
0.33 HP 120 V AC; 1 HP 277 V AC
Mechanical Durability
5000000 cycles
Operating Time
20 ms
Product Certifications
UL; CSA; CE; EAC
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Product Type
Plug-in electromechanical relay
Electrical Durability
100000 cycles
Control Circuit Voltage Limits
0.8...1.1 Un DC
Contacts Material
Silver alloy, gold flashed

Description

General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.97 in, Body Height 1.4 in
