  13. Plug-In, General Purpose Relay, Square, 10 A, 8 Pins, Blade Terminal

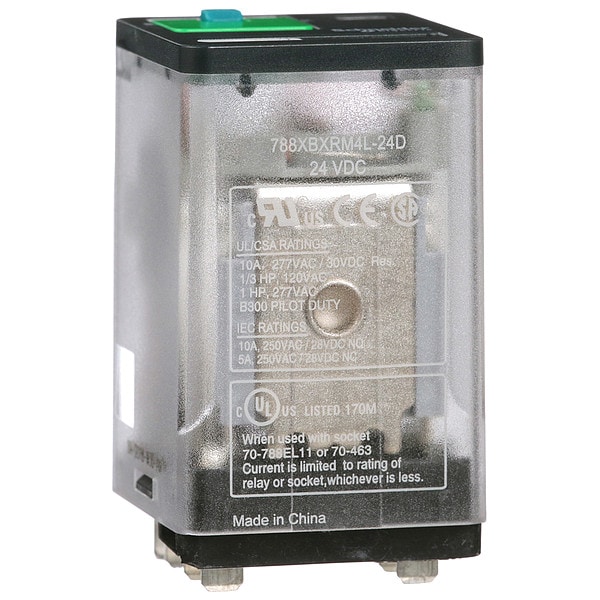

Schneider Electric Plug-In, General Purpose Relay, Square, 10 A, 8 Pins, Blade Terminal 788XBXRM4L-24D - main

Plug-In, General Purpose Relay, Square, 10 A, 8 Pins, Blade Terminal

  • Mfr # 788XBXRM4L-24D

  • Zoro # G9784327

product price: $26.15
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
8
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
788XBXRM4L-24D
Zoro #
G9784327
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.09 in
Flat Pin Width
0.189 in
Body Height
1.4 in
Body Width
1.38 in
Overall Depth
2.09 in
Body Depth
2.09 in
Width
1.38 in (35 mm)
Depth
1.40 in (35.5 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
8
Coil Voltage
24V DC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 277V, 5 A @ 250V-1
Contact Rating (DC)
10 A @ 28V
Power Consumption - Relay
1.4 W
Socket Code
C
Socket
Mfr. No. 70-463-1, 70-124-1, 70-124-2, 70-178-1, 70-178-2
Contact Material
Silver Alloy
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Status Indicator
LED Indicator
Standards
CE Certified, CSA Certified, EAC, UL Listed
Maximum Operating Temperature
131 Degrees F
Resistance Properties
Shock-Resistant, Vibration-Resistant
Horsepower @ 120V AC
1/3 hp
Motor Rated
Yes
Weight
2.93 oz
Mechanical Operating Durability
5,000,000
Minimum Operating Temperature
-40 Degrees F
Push-To-Test Method
Lockable Push Test Button
Horsepower @ 240V AC
1/2 hp
IP Rating
IP40
Maximum Switching Voltage
250V, 300V
Sealing
Enclosed
Coil Resistance
470 ohm
Pin Shape
Flat
Input Voltage
24V DC
Operating Current
10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact
Electrical Operating Durability
100,000
Power Consumption
1.4 W
Series
788R Series
Minimum Switching Current
10 mA
Response Time
20 msec
Shock Resistance
10 gn
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Control Circuit Voltage Limits
0.8...1.1 Un DC
Vibration Resistance
+/- 1 mm 10 to 35 Hz in operation; 3 gn 35 to 150 Hz in operation
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Rated Power in HP
0.33 HP 120 V AC; 1 HP 277 V AC
Control Type
Lockable test button
Product Certifications
UL; CSA; CE; EAC
Contact Composition
2 NC + 2 NO
Operating Time
20 ms

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 2.09 in, Body Height 1.4 in
