Shop SCHNEIDER ELECTRIC

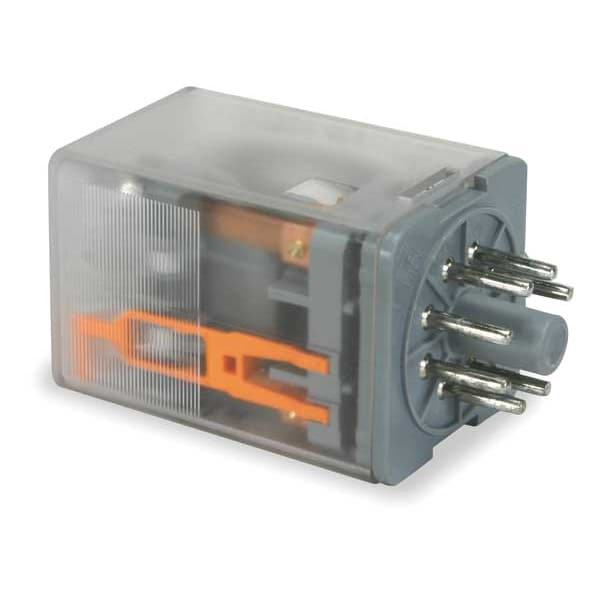

Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Pin

  • Mfr # 8501KPR12V24

  • Zoro # G3233036

product price:  $53.59
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
8-Pin Terminal
Base Shape
Octal
Number of Pins
8
Coil Voltage
240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8501KPR12V24
Zoro #
G3233036
UPC #
785901334187
Country of Origin
China

Dimensions

Overall Height - Relay
2.6 in
Body Depth
2.1 in
Overall Depth
2.7 in
Body Height
1.4 in
Body Width
1.4 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
8-Pin Terminal
Base Shape
Octal
Number of Pins
8
Coil Voltage
240V AC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 277V
Contact Rating (DC)
10 A @ 28V
Power Consumption - Relay
3 VA
HP @ 240V
1/2 hp
Socket
Mfr. No. 8501NR51 or 8501NR52
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket Code
A
Status Indicator
Mechanical Flag
Contact Material
Silver Nickel
HP @ 120V
1/3 hp
Standards
CE Marked, CSA Certified, UL Listed
Minimum Operating Temperature
-40 Degrees F
Horsepower @ 240V AC
1/2 hp
Horsepower @ 120V AC
1/3 hp
Maximum Operating Temperature
131 Degrees F
Motor Rated
Yes
Response Time
20 msec
Maximum Switching Voltage
300V AC, 30V DC
Sealing
Enclosed
Push-To-Test Method
No Button
Compatible with Manufacturer Model Number
8501NR51, 8501NR52
Pin Shape
Round
Series
Square D 8501K Series
Power Consumption
3 VA
Compatible Manufacturer Part Number
8501NR51, 8501NR52
Compatible Manufacturer Model Number
8501NR51, 8501NR52
Switching Voltage
300 V AC; 30 V DC
Operating Time
20 ms - pick-up || 20 ms - drop-out
For Manufacturer Part Number
8501NR51, 8501NR52
Compatible with Mfr. Model Number
8501NR51, 8501NR52

Description

General Purpose Relay, Base Shape Octal, Coil Voltage 240V AC, Contact Form DPDT, Current Rating 10 A, Electrical Connection 8-Pin Terminal, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 2.1 in, Body Height 1.4 in, Body Width 1.4 in
