  13. Plug-In, General Purpose Relay, Square, 12 A, 8, Faston Connector

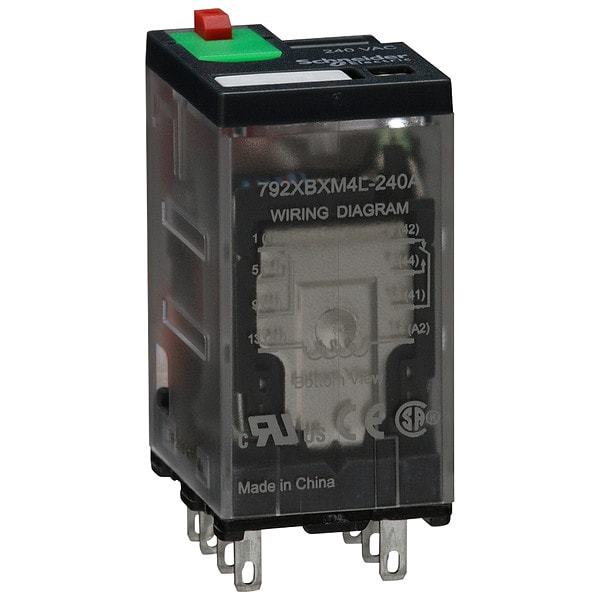

Schneider Electric Plug-In, General Purpose Relay, Square, 12 A, 8, Faston Connector 792XBXM4L-240A - main

Plug-In, General Purpose Relay, Square, 12 A, 8, Faston Connector

  • Mfr # 792XBXM4L-240A

  • Zoro # G0069487

product price: $10.79
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
792XBXM4L-240A
Zoro #
G0069487
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.54 in
Body Depth
1.57 in
Flat Pin Width
0.02 in
Overall Depth
1.81 in
Body Height
1.07 in
Body Width
0.83 in
Depth
1.07 in (27.2 mm)
Width
0.83 in (21 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
240V AC
Current Rating
12 A
Contact Form
DPDT
Contact Rating (AC)
12 A @ 120V, 12 A @ 277V
Contact Rating (DC)
12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC)
Power Consumption - Relay
1.2 VA
Socket Code
Q
Contact Material
Gold Flashed Silver
Standards
CE Certified, CSA Certified, UL Listed
Socket
Mfr. No. 70-782EL8
Status Indicator
LED and Mechanical Flag
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Resistance Properties
Shock-Resistant, Vibration-Resistant
For Use With
General Purpose Relay
Series
792 Series
Minimum Operating Temperature
-40 Degrees F
Dielectric Strength
1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Maximum Operating Temperature
131 Degrees F
Weight
1.31 oz
Mechanical Operating Durability
10,000,000
Power Consumption
1.2 VA
Motor Rated
Yes
Response Time
25 msec
Coil Resistance
17,720 ohm
IP Rating
IP40
Horsepower @ 240V AC
1 hp
Input Voltage
240V AC
Horsepower @ 120V AC
1/2 hp
Operating Current
12 A AC-1 (NO Conforming to IEC), 12 A at 120V AC (Conforming to UL), 12 A at 277V AC (Conforming to UL), 12 A at 30V DC (Conforming to UL), 12 A DC-1 (NO Conforming to IEC), 6 A AC-1 (NC Conforming to IEC), 6 A DC-1 (NC Conforming to IEC)
Minimum Switching Current
10 mA
Electrical Operating Durability
100,000
Maximum Switching Voltage
250V AC, 300V DC
Push-To-Test Method
Lockable Push Test Button
Vibration Resistance
3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Contact Composition
2 NO + 2 NC
Shock Resistance
10 gn in operation; 30 gn not operating
Product Certifications
UL; CSA; CE
Motor Power HP
0.5 hp 120 V AC; 1 hp 277 V AC
Control Type
Lockable test button
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Surge Withstand Duration
1.2/50µs
Product Range
Legacy
Connections Terminals
Faston connectors
Voltage Range
0.8...1.1 Un AC/DC
Operating Time
25 ms; 20 ms at maximum rated voltage
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Power consumption in VA
1.2 VA AC

Description

General Purpose Relay, Base Shape Square, Coil Voltage 240V AC, Contact Form DPDT, Current Rating 12 A, Electrical Connection Faston Connector, Flat Pin Width 0.02 in, Number of Pins 8, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 12 A @ 120V, 12 A @ 277V, 12 A @ AC-1 (NO), 6 A @ AC-1 (NC), Contact Rating (DC) 12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method Lockable
