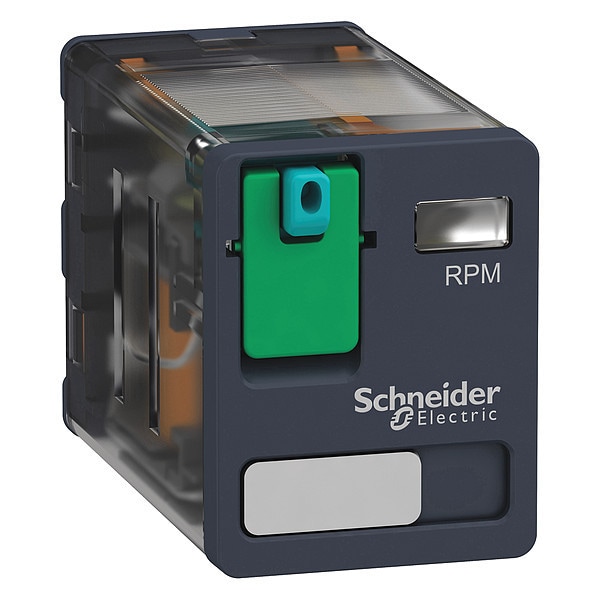

Plug-In, General Purpose Relay, Square, 15 A, 8 Pins, Quick Connect

  • Mfr # RPM21BD

  • Zoro # G1534005

CAD Available
product price:  $11.85
/ea

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
8
Coil Voltage
24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RPM21BD
Zoro #
G1534005
UPC #
785901447825
Country of Origin
China

Dimensions

Overall Height - Relay
2.13 in
Body Depth
1.54 in
Body Height
1.06 in
Flat Pin Width
0.18 in
Body Width
0.83 in
Overall Depth
1.82 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
8
Coil Voltage
24V DC
Current Rating
15 A
Contact Form
DPDT
Contact Rating (AC)
15 A @ 250V
Contact Rating (DC)
15 A @ 28V
Power Consumption - Relay
0.9 W
Status Indicator
Mechanical Flag
Socket
Mfr. No. RPZF2
Contact Material
Silver Alloy
Standards
CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed
Socket Code
D
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Features
Plug In Protection Module to Protect Against Electrical Spikes
IP Rating
IP40
Coil Resistance
640 ohm
Input Voltage
26.4V DC
Mechanical Operating Durability
10,000,000
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
131 Degrees F
Horsepower @ 120V AC
Not Rated
Pin Shape
Flat
For Use With
Hard-Wired Logic Automated Systems
Motor Rated
Not Rated - Not Rated
Series
Harmony(TM) RPM Series
Minimum Switching Current
10 mA
Dielectric Strength
1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Reinforced, 2,000V AC Between Poles with Basic
Maximum Switching Voltage
250V
Power Consumption
0.85 W
Sealing
Enclosed
Push-To-Test Method
Lockable
Electrical Operating Durability
100,000
Horsepower @ 240V AC
Not Rated
Resistance Properties
Shock-Resistant, Vibration-Resistant
Weight
1.28 oz
Response Time
20 msec
Operating Time
20 ms at nominal voltage
Switching Power
Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V
Protection Category
RT I
Switching Voltage
250 V IEC
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.18 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 250V, Contact Rating (DC) 15 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.54 in, Body Height 1.06 in, Body Width 0.83 in
