  13. Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector

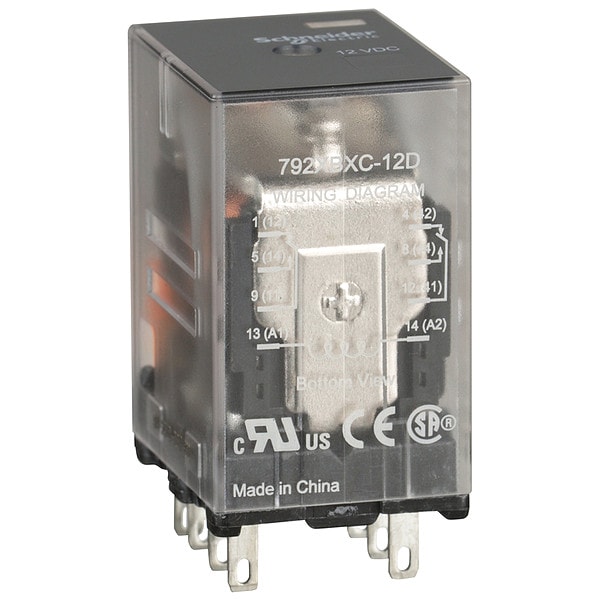

Schneider Electric Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector 792XBXC-12D - main

Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector

  • Mfr # 792XBXC-12D

  • Zoro # G0059267

product price: $8.45
/ea
Sold in multiples of 2 for $16.90

Key Features

Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
792XBXC-12D
Zoro #
G0059267
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.4 in
Body Width
1.37 in
Body Height
2.67 in
Overall Depth
1.97 in
Body Depth
2.12 in
Width
0.83 in (21 mm)
Depth
1.07 in (27.2 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
12V DC
Current Rating
12 A
Contact Form
DPDT
Contact Rating (AC)
12 A @ 120V, 12 A @ 277V
Contact Rating (DC)
12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC)
Socket
Mfr. No. 70-782EL8
Features
Clear Cover
Power Consumption - Relay
1.1 W
Status Indicator
Mechanical Flag
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Standards
CE Certified, CSA Certified, UL Listed
Socket Code
Q
Contact Material
Gold Flashed Silver
Horsepower @ 240V AC
1 hp
Motor Rated
Yes
Maximum Operating Temperature
131 Degrees F
Maximum Switching Voltage
250V AC, 300V DC
Mechanical Operating Durability
10,000,000
Response Time
25 msec
Coil Resistance
160 ohm
Minimum Switching Current
10 mA
Input Voltage
12V DC
Series
792 Series
Push-To-Test Method
Manual Push Test Button
For Use With
General Purpose Relay
Power Consumption
0.8 W
Operating Current
12 A AC-1 (NO Conforming to IEC), 12 A at 120V AC (Conforming to UL), 12 A at 277V AC (Conforming to UL), 12 A at 30V DC (Conforming to UL), 12 A DC-1 (NO Conforming to IEC), 6 A AC-1 (NC Conforming to IEC), 6 A DC-1 (NC Conforming to IEC)
Weight
1.31 oz
Horsepower @ 120V AC
1/2 hp
Electrical Operating Durability
100,000
Resistance Properties
Shock-Resistant, Vibration-Resistant
Dielectric Strength
1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Minimum Operating Temperature
-40 Degrees F
IP Rating
IP40
Connections Terminals
Faston connectors
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Operating Time
25 ms; 20 ms at maximum rated voltage
Product Range
Legacy
Surge Withstand Duration
1.2/50µs
Power consumption in W
0.8 W DC
Voltage Range
0.8...1.1 Un AC/DC
Shock Resistance
10 gn in operation; 30 gn not operating
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Contact Composition
2 NO + 2 NC
Product Certifications
UL; CSA; CE
Vibration Resistance
3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating
Motor Power HP
0.5 hp 120 V AC; 1 hp 277 V AC

Description

General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form DPDT, Current Rating 12 A, Electrical Connection Faston Connector, Number of Pins 8, Status Indicator Mechanical Flag, Contact Rating (AC) 12 A @ 120V, 12 A @ 277V, 12 A @ AC-1 (NO), 6 A @ AC-1 (NC), Contact Rating (DC) 12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 2.12 in, Body Height 2.67 in
