  13. Plug-In, Plug-In Relay, Square, 10 A, 5 Pins, Quick Connect

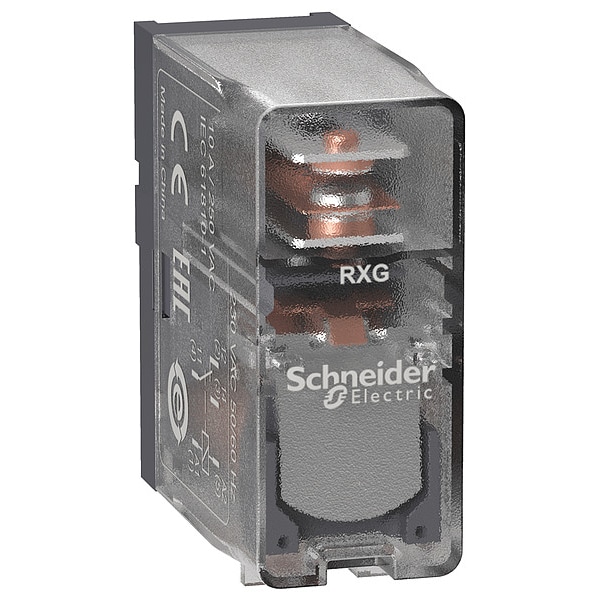

Schneider Electric Plug-In, Plug-In Relay, Square, 10 A, 5 Pins, Quick Connect RXG15P7 - main

Plug-In, Plug-In Relay, Square, 10 A, 5 Pins, Quick Connect

  • Mfr # RXG15P7

  • Zoro # G3463836

product price: $12.45
/ea
Sold in multiples of 10 for $124.50

Key Features

Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
5
Coil Voltage
230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RXG15P7
Zoro #
G3463836
UPC #
785901584650
Country of Origin
China

Dimensions

Overall Height - Relay
1.21 in
Body Width
0.51 in
Body Depth
1.4 in
Overall Depth
1.69 in
Body Height
1.14 in
Flat Pin Width
0.19 in

Details

Item
Plug-In Relay
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
5
Coil Voltage
230V AC
Current Rating
10 A
Contact Form
SPDT
Contact Rating (AC)
10 A @ 250V
Contact Rating (DC)
10 A @ 30V
Status Indicator
No Indicator
Features
IP Degree of Protection: IP40; Mercury Free: Yes, Toxic Heavy Metal Free: Yes
Input Voltage
1.1V AC
Contact Material
Silver Alloy
Standards
CE Certified, CSA C22.2 No 14, CSA Certified, DNV-GL, EAC, IEC 61810-1, UL 508, UL Listed
Power Consumption - Relay
0.82 VA
Response Time
20 msec
Socket Code
L
Electrical Operating Durability
100,000
Frequency
50/60 Hz
Maximum Switching Voltage
250V AC, 30V DC
Pin Shape
Flat
Mechanical Operating Durability
10,000,000
Power Consumption
0.82 VA
Insulation Resistance
1,000 megaohm
IP Rating
IP40
Sealing
Enclosed
Minimum Switching Current
100 mA
Weight
0.64 oz
Dielectric Strength
1,000V AC Between Contacts with Micro Disconnection, 5,000V AC Between Coil and Contact with Reinforced Insulation
For Use With
Hard-Wired Logic Automated Systems
Series
Harmony(TM) RXG Series
Maximum Operating Temperature
158 Degrees F
Resistance Properties
Shock-Resistant, Vibration-Resistant
Minimum Operating Temperature
-40 Degrees F
Coil Resistance
23,500 ohm
Switching Power
Max 2500 VA; Min 500 mW at 100 mA, 5 V DC
Operating Time
20 ms
Switching Voltage
250 V AC/30 V DC
Protection Category
RT I

Description

Relay, Base Shape Square, Coil Voltage 230V AC, Contact Form SPDT, Current Rating 10 A, Electrical Connection Quick-Connect, Flat Pin Width 0.19 in, Number of Pins 5, Pin Shape Flat, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 250V, Contact Rating (DC) 10 A @ 30V, Mounting Style Plug-In, Body Depth 1.4 in, Body Height 1.14 in, Body Width 0.51 in, Coil Resistance 23,500 ohm, Contact Material Silver Alloy
