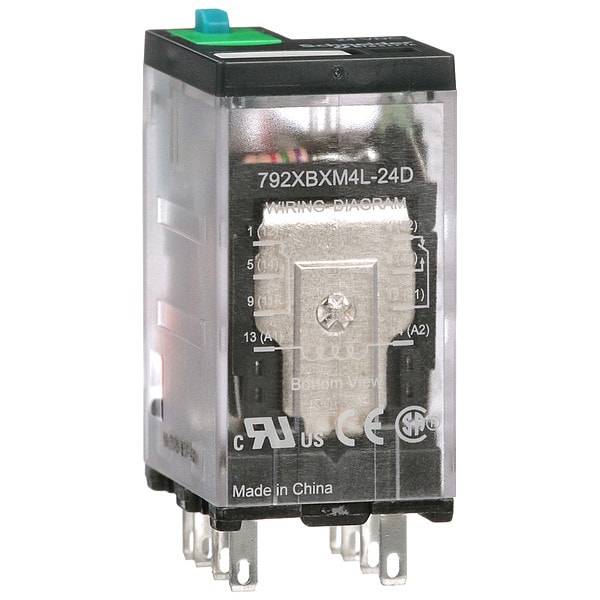

Schneider Electric Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector 792XBXM4L-24D - main

CAD Drawings

Download CAD Files

Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector

  • Mfr # 792XBXM4L-24D

  • Zoro # G0059258

CAD Available
product price: $11.99
/ea

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
792XBXM4L-24D
Zoro #
G0059258
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.54 in
Body Depth
1.57 in
Body Height
1.07 in
Body Width
0.83 in
Overall Depth
1.81 in
Flat Pin Width
0.02 in
Width
0.83 in (21 mm)
Depth
1.07 in (27.2 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
24V DC
Current Rating
12 A
Contact Form
DPDT
Contact Rating (AC)
12 A @ 120V, 12 A @ 277V
Contact Rating (DC)
12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC)
Status Indicator
LED and Mechanical Flag
Socket Code
Q
Standards
CE Certified, CSA Certified, UL Listed
Power Consumption - Relay
1.1 W
Socket
Mfr. No. 70-782EL8
Contact Material
Gold Flashed Silver
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Weight
1.31 oz
Input Voltage
24V DC
Operating Current
12 A AC-1 (NO Conforming to IEC), 12 A at 120V AC (Conforming to UL), 12 A at 277V AC (Conforming to UL), 12 A at 30V DC (Conforming to UL), 12 A DC-1 (NO Conforming to IEC), 6 A AC-1 (NC Conforming to IEC), 6 A DC-1 (NC Conforming to IEC)
Minimum Switching Current
10 mA
Minimum Operating Temperature
-40 Degrees F
Electrical Operating Durability
100,000
Maximum Switching Voltage
250V AC, 300V DC
Mechanical Operating Durability
10,000,000
Horsepower @ 120V AC
1/2 hp
Motor Rated
Yes
Push-To-Test Method
Lockable Push Test Button
Horsepower @ 240V AC
1 hp
Power Consumption
0.8 W
Coil Resistance
640 ohm
IP Rating
IP40
Dielectric Strength
1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
For Use With
General Purpose Relay
Series
792 Series
Resistance Properties
Shock-Resistant, Vibration-Resistant
Maximum Operating Temperature
131 Degrees F
Response Time
25 msec
Voltage Range
0.8...1.1 Un AC/DC
Control Type
Lockable test button
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Product Range
Legacy
Surge Withstand Duration
1.2/50µs
Shock Resistance
10 gn in operation; 30 gn not operating
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Contact Composition
2 NO + 2 NC
Motor Power HP
0.5 hp 120 V AC; 1 hp 277 V AC
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Power consumption in W
0.8 W DC
Operating Time
25 ms; 20 ms at maximum rated voltage
Connections Terminals
Faston connectors
Vibration Resistance
3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating
Product Certifications
UL; CSA; CE
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 12 A, Electrical Connection Faston Connector, Flat Pin Width 0.02 in, Number of Pins 8, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 12 A @ 120V, 12 A @ 277V, 12 A @ AC-1 (NO), 6 A @ AC-1 (NC), Contact Rating (DC) 12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method Lockable
