  13. Plug-In, General Purpose Relay, Square, 15 A, 14 Pins, Quick Connect

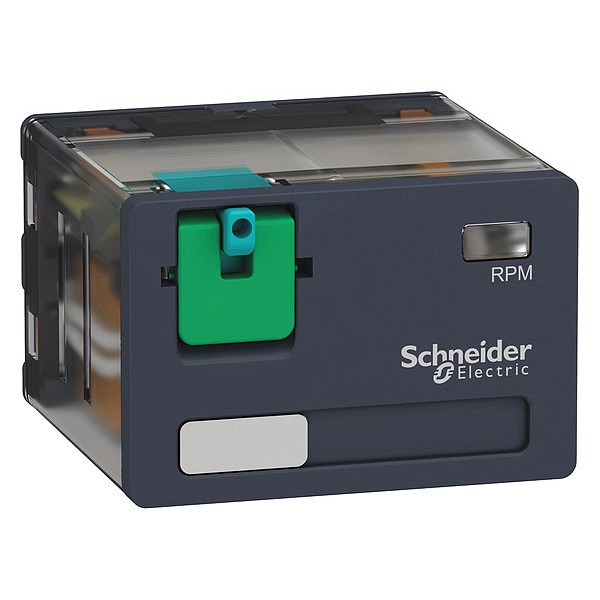

Schneider Electric Plug-In, General Purpose Relay, Square, 15 A, 14 Pins, Quick Connect RPM41BD - main

Plug-In, General Purpose Relay, Square, 15 A, 14 Pins, Quick Connect

  • Mfr # RPM41BD

  • Zoro # G0290412

product price: $14.89
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
14
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RPM41BD
Zoro #
G0290412
UPC #
785901572848
Country of Origin
China

Dimensions

Overall Height - Relay
2.13 in
Overall Depth
1.82 in
Body Width
1.61 in
Body Depth
1.54 in
Flat Pin Width
0.18 in
Body Height
1.06 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
14
Coil Voltage
24V DC
Current Rating
15 A
Contact Form
4PDT
Contact Rating (AC)
15 A @ 250V
Contact Rating (DC)
15 A @ 28V
Socket Code
F
Features
Plug In Protection Module to Protect Against Electrical Spikes
Status Indicator
Mechanical Flag
Contact Material
Silver Alloy
Standards
CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed
Power Consumption - Relay
1.6 W
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket
Mfr. No. RPZF4
Maximum Switching Voltage
250V
Horsepower @ 120V AC
Not Rated
Horsepower @ 240V AC
Not Rated
Minimum Switching Current
10 mA
Power Consumption
1.6 W
IP Rating
IP40
Response Time
20 msec
Motor Rated
Not Rated - Not Rated
Weight
2.56 oz
Electrical Operating Durability
100,000
For Use With
Hard-Wired Logic Automated Systems
Series
Harmony(TM) RPM Series
Input Voltage
26.4V DC
Push-To-Test Method
Lockable Push Test Button
Coil Resistance
303 ohm
Maximum Operating Temperature
131 Degrees F
Mechanical Operating Durability
10,000,000
Dielectric Strength
1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Reinforced, 2,000V AC Between Poles with Basic
Minimum Operating Temperature
-40 Degrees F
Sealing
Enclosed
Resistance Properties
Shock-Resistant, Vibration-Resistant
Pin Shape
Flat
Switching Power
Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V
Switching Voltage
250 V IEC
Protection Category
RT I
Operating Time
20 ms at nominal voltage
Series Name
Power
Ambient Air Temperature For Operation
-40 to 131°F (-40 to 55°C)
Degree Of Protection
IP40 conforming to IEC 60529
Conventional Enclosed Thermal Current
15 A -40 to 131°F (-40 to 55°C)
Average Coil Resistance
303 Ohm at 68°F (20°C) +/- 10%
Device Presentation
Complete product
Utilisation Coefficient
0.2
Control Circuit Voltage
24 V DC
Operating Rate
Less than or Equal to 1200 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load
Drop-Out Voltage Threshold
Greater than or Equal to 0.1 Uc DC
Maximum Switching Capacity
3750 VA; 420 W
Minimum Switching Capacity
170 mW 10 mA, 17 V
Control Type
Lockable test button
Rated Insulation Voltage
250 V IEC; 300 V CSA; 300 V UL
Resistive Load Current
15 A 250 V AC; 15 A 28 V DC
Contact Type and Composition
4 C/O
Shock Resistance
15 gnin operation; 30 gnnot operating
Ambient Air Temperature For Storage
-40 to 185°F (-40 to 85°C)
Rated Operational Voltage Limits
19.2 to 26.4 V DC
Pollution Degree
3
Product Certifications
EAC; CSA; UL
Rated Impulse Withstand Voltage
4 kV 1.2/50 µs
Test Levels
Level A group mounting
Vibration Resistance
3 gn +/- 1 mm 10 to 150 Hz)5 cycles in operation; 5 gn +/- 1 mm 10 to 150 Hz)5 cycles not operating
Operating Position
Any position

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form 4PDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.18 in, Number of Pins 14, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 250V, Contact Rating (DC) 15 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.54 in, Body Height 1.06 in, Body Width 1.61 in
