  13. Plug-In, General Purpose Relay, Square, 3 A, 14, Faston Connector

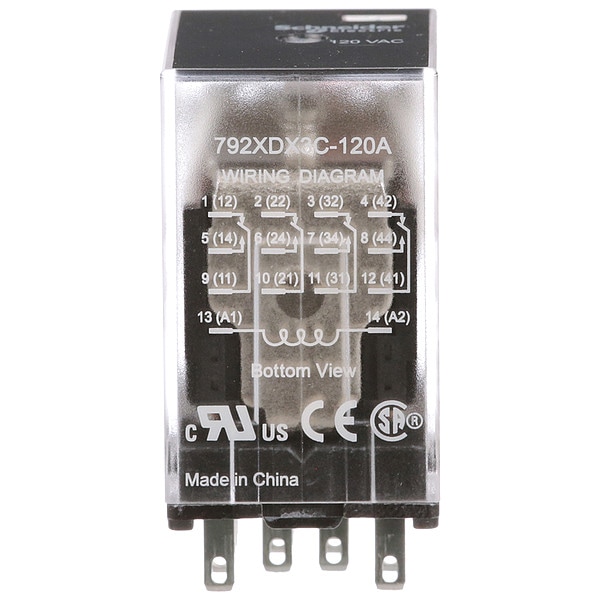

Schneider Electric Plug-In, General Purpose Relay, Square, 3 A, 14, Faston Connector 792XDX3C-120A - main

Plug-In, General Purpose Relay, Square, 3 A, 14, Faston Connector

  • Mfr # 792XDX3C-120A

  • Zoro # G0316806

product price: $10.49
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
792XDX3C-120A
Zoro #
G0316806
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.4 in
Body Depth
1.37 in
Body Height
1.07 in
Body Width
0.83 in
Overall Depth
1.61 in
Width
0.83 in (21 mm)
Depth
1.07 in (27.2 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
120V AC
Current Rating
3 A
Contact Form
4PDT
Contact Rating (AC)
1.00 A @ AC-1, 2.00 A @ AC-1, 3 A @ 120/240/277V
Contact Rating (DC)
1 A @ DC-1 (NC), 2 A @ DC-1 (NO), 3 A @ 30V
Standards
CE Certified, CSA Certified, UL Listed
Power Consumption - Relay
1.2 VA
Socket Code
G
Features
Clear Cover
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Status Indicator
Mechanical Flag
Socket
Mfr. No. 70-782E14, 70-461
Contact Material
Gold Plated Bifurcated Silver
Horsepower @ 120V AC
1/16 hp
Electrical Operating Durability
100,000
Motor Rated
Yes
Minimum Switching Current
3 mA
Resistance Properties
Shock-Resistant, Vibration-Resistant
Push-To-Test Method
No Test Button
Response Time
25 msec
Mechanical Operating Durability
10,000,000
Operating Current
1 A AC-1 (NC Conforming to IEC), 1 A DC-1 (NC Conforming to IEC), 2 A AC-1 (NO Conforming to IEC), 2 A DC-1 (NO Conforming to IEC), 3 A at 120V AC (Conforming to UL), 3 A at 240/277V AC (Conforming to UL), 3 A at 30V DC (Conforming to UL)
Horsepower @ 240V AC
1 hp
Weight
1.31 oz
IP Rating
IP40
Series
792 Series
Maximum Operating Temperature
131 Degrees F
Minimum Operating Temperature
-40 Degrees F
Dielectric Strength
1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Coil Resistance
3,630 ohm
Power Consumption
0.9 VA
For Use With
General Purpose Relay
Input Voltage
120V AC
Maximum Switching Voltage
250V AC, 300V DC
Vibration Resistance
3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating
Motor Power HP
0.0625 hp 120 V AC
Connections Terminals
Faston connectors
Power consumption in VA
0.9 VA AC
Shock Resistance
10 gn in operation; 30 gn not operating
Voltage Range
0.8...1.1 Un AC/DC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Product Range
Legacy
Contact Composition
4 NO + 4 NC
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Operating Time
25 ms; 20 ms at maximum rated voltage
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Product Certifications
UL; CSA; CE
Surge Withstand Duration
1.2/50µs

Description

General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 4PDT, Current Rating 3 A, Electrical Connection Faston Connector, Number of Pins 14, Status Indicator Mechanical Flag, Contact Rating (AC) 1.00 A @ AC-1 (NC), 2.00 A @ AC-1 (NO), 3 A @ 120/240/277V, Contact Rating (DC) 1 A @ DC-1 (NC), 2 A @ DC-1 (NO), 3 A @ 30V, Horsepower @ 120V AC 1/16 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.37 in, Body Height 1.07 in
