Shop HONEYWELL

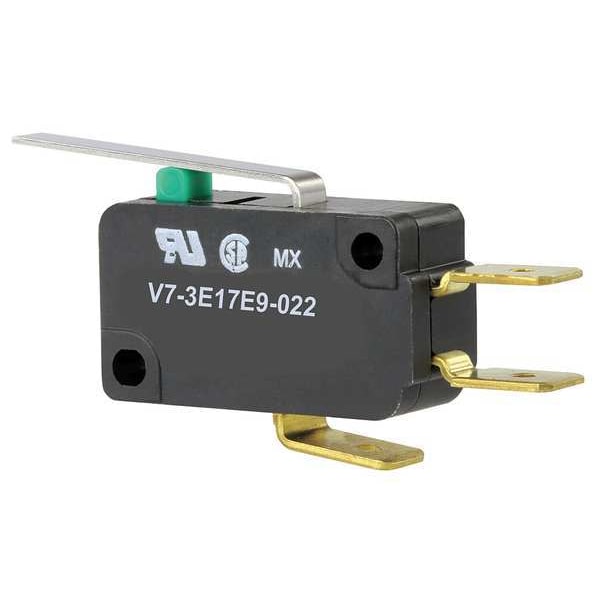

Miniature Snap Action Switch, Lever, Long Actuator, SPDT

  • Mfr # V7-3E17E9-022
  • Zoro # G4730153
product price:
$
4.59
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Long
AC Contact Rating - Snap Action Switch
10 A 1/3 HP 125 V, 250 V or 277 V
DC Contact Rating - Snap Action Switch
1 /2A 125 V; 1/4 A 250 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.41 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
V7-3E17E9-022
Zoro #
G4730153
UPC #
-
Country of Origin
Mexico
Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Long
AC Contact Rating - Snap Action Switch
10 A 1/3 HP 125 V, 250 V or 277 V
DC Contact Rating - Snap Action Switch
1 /2A 125 V; 1/4 A 250 V
Contact Form- Switches
SPDT
Standards
CSA, ENEC, RoHS, UL Listed
Type of Actuator
Long Straight Lever
Current Rating
10A
Series
V7
Terminal Type
Quick Connect
Operating Force
0.29N
Operating Temp. Range
-40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F]
Watertight - Snap Action Switch
No
Release Force
0.04 ozf
Max. Pretravel
3.05 mm
Contact Form
1NO/1NC
Over Travel
1.65 mm
Electrical Connection - Snap Action Switch
1/4 in Quick Connect
Housing Material
PCT Polyester Thermoplastic
Voltage Rating
250VAC
Differential Travel
0.029 in
AC Contact Rating
10 A @ 277 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Contact Rating
10A 277Vac
Over-Travel
0.065 in (1.65mm) OT
Pre-Travel - max
0.12 in (3.05mm) PT
Differential-Travel - max
0.03 in (0.75mm) DT
Poles/Contacts
SPDT 1NO 1NC
Operating Temperature
-40°F (-40°C) to 180°F (82°C)
Operator Configuration
Straight
Type
Miniature Limit Switch
Force to Operate
1.09 oz (0.29N) OF
Head Action
Spring Return, Standard
Connection
Quick Connect Terminal
Connection Configuration
Spade Tab, 0.25 in.Wide x 0.032 in.Thick
Head
Lever
Overtravel
0.065 in
Body Material
Polyester
Operating Force - Minimum
0.3 N
Pretravel
0.12 in
Operating Temperature - Maximum
365 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Center Mounting Hole Distance
0.88 in
Electrical Connection
Quick Connect
Actuator Style
Lever
Operating Force - Maximum
1.09 ozf
Differential Travel - Maximum
0.029 in
Mounting Hole Horizontal Center to Center Distance
22 mm

Description

Miniature Snap Action Switch, Lever, Long, AC Contact Rating - Snap Action Switch 10 A 1/3 HP 125 V, 250 V or 277 V, DC Contact Rating - Snap Action Switch 1 /2A 125 V; 1/4 A 250 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.41 in, Height - Snap Action Switch 0.63 in, Width - Snap Action Switch 1.14 in, Depth - Snap Action Switch 0.4 in, Electrical Connection - Snap Action Switch 1/4 in Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers
