  13. Plug-In, General Purpose Relay, Square, 3 A, 14, Faston Connector

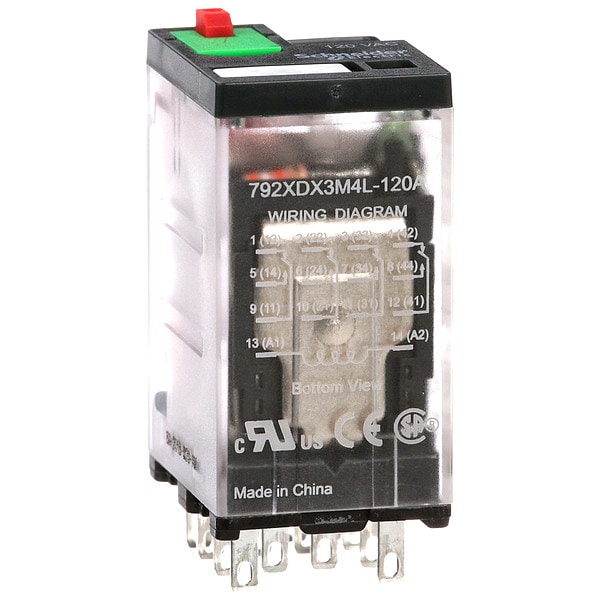

Schneider Electric Plug-In, General Purpose Relay, Square, 3 A, 14, Faston Connector 792XDX3M4L-120A - main

Plug-In, General Purpose Relay, Square, 3 A, 14, Faston Connector

  • Mfr # 792XDX3M4L-120A

  • Zoro # G0316876

product price: $13.49
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
792XDX3M4L-120A
Zoro #
G0316876
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.54 in
Overall Depth
1.81 in
Body Height
1.07 in
Body Depth
1.57 in
Flat Pin Width
0.02 in
Body Width
0.83 in
Width
0.83 in (21 mm)
Depth
1.07 in (27.2 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
120V AC
Current Rating
3 A
Contact Form
4PDT
Contact Rating (AC)
1 A @ 250V, 2 A @ 250V, 3 A @ 120/240/277V
Contact Rating (DC)
1 A @ 28V, 2 A @ 28V, 3 A @ 30V
Standards
CE Certified, CSA Certified, UL Listed
Socket Code
P
Contact Material
Gold Plated Bifurcated Silver
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket
Mfr. No. 70-782E14, 70-461
Power Consumption - Relay
1.2 VA
Status Indicator
LED and Mechanical Flag
Electrical Operating Durability
100,000
Coil Resistance
3,630 ohm
Horsepower @ 240V AC
1 hp
Operating Current
1 A at 250V AC-1 (NC Conforming to IEC), 1 A at 28V DC-1 (NC Conforming to IEC), 2 A at 250V AC-1 (NO Conforming to IEC), 2 A at 28V DC-1 (NO Conforming to IEC), 3 A at 120V AC (Conforming to UL), 3 A at 240/277V AC (Conforming to UL), 3 A at 30V DC (Conforming to UL)
Push-To-Test Method
Lockable Push Test Button
Maximum Operating Temperature
131 Degrees F
Power Consumption
0.9 VA
Minimum Operating Temperature
-40 Degrees F
Resistance Properties
Shock-Resistant, Vibration-Resistant
Horsepower @ 120V AC
1/16 hp
For Use With
General Purpose Relay
Input Voltage
120V AC
Maximum Switching Voltage
250V AC, 300V DC
Mechanical Operating Durability
10,000,000
Series
792 Series
Response Time
25 msec
IP Rating
IP40
Weight
1.31 oz
Minimum Switching Current
3 mA
Dielectric Strength
1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Motor Rated
Yes
Surge Withstand Duration
1.2/50µs
Motor Power HP
0.0625 hp 120 V AC
Contact Composition
4 NO + 4 NC
Connections Terminals
Faston connectors
Voltage Range
0.8...1.1 Un AC/DC
Power consumption in VA
0.9 VA AC
Product Range
Legacy
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Control Type
Lockable test button
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Vibration Resistance
3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating
Operating Time
25 ms; 20 ms at maximum rated voltage
Shock Resistance
10 gn in operation; 30 gn not operating
Product Certifications
UL; CSA; CE

Description

General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 4PDT, Current Rating 3 A, Electrical Connection Faston Connector, Flat Pin Width 0.02 in, Number of Pins 14, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 1 A @ 250V, 2 A @ 250V, 3 A @ 120/240/277V, Contact Rating (DC) 1 A @ 28V, 2 A @ 28V, 3 A @ 30V, Horsepower @ 120V AC 1/16 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.57 in
