  13. Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector

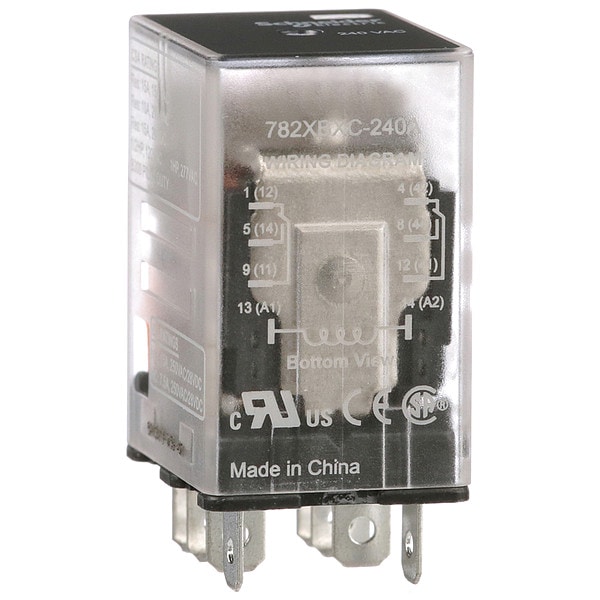

Schneider Electric Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector 782XBXC-240A - main

Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector

  • Mfr # 782XBXC-240A

  • Zoro # G3056672

product price: $24.70
/ea

Key Features

Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
782XBXC-240A
Zoro #
G3056672
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.64 in
Body Width
0.83 in
Body Height
1.07 in
Body Depth
1.37 in
Overall Depth
1.66 in
Flat Pin Width
0.187 in
Width
0.83 in (21 mm)
Depth
1.07 in (27.3 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
240V AC
Current Rating
15 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V
Contact Rating (DC)
15 A @ 28V (NO), 7.55 A @ 28V (NC)
Status Indicator
Mechanical Flag
Features
Gold Flashed Contacts
Contact Material
Gold Flashed Silver Alloy
Socket
Mfr. No. 70-459-1, 70-782D8-1A
Socket Code
J
Power Consumption - Relay
1.2 VA
Standards
CE Certified, CSA Certified, UL Listed
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Electrical Operating Durability
100,000
Minimum Switching Current
10 mA
Power Consumption
0.85 W, 1.1 VA
Mechanical Operating Durability
10,000,000
IP Rating
IP40
Weight
1.27 oz
Coil Resistance
17,720 ohm
Minimum Operating Temperature
-40 Degrees F
Operating Current
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
Maximum Switching Voltage
250V AC, 300V DC
Push-To-Test Method
No Test Button
Motor Rated
Yes
For Use With
Automation Panels and Controls
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Horsepower @ 120V AC
1/2 hp
Series
782 Series
Response Time
20 msec
Resistance Properties
Shock-Resistant, Vibration-Resistant
Maximum Operating Temperature
131 Degrees F
Horsepower @ 240V AC
1 hp
Input Voltage
240V AC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Vibration Resistance
+/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Power consumption in W
0.85 W DC
Product Certifications
UL; CE; CSA
Shock Resistance
15 gn in operation
Operating Time
20 ms operating; 20 ms tripping
Product Range
Legacy
Contact Composition
2 NO + 2 NC
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Power consumption in VA
1.1 VA AC
Connections Terminals
Faston terminals
Motor Power HP
0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz
Voltage Range
0.8...1.1 Un AC/DC

Description

General Purpose Relay, Base Shape Square, Coil Voltage 240V AC, Contact Form DPDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 8, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V (NO), 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.37 in
