  13. Plug-In, General Purpose Relay, Square, 6 A, 14 Pins, Faston Connector

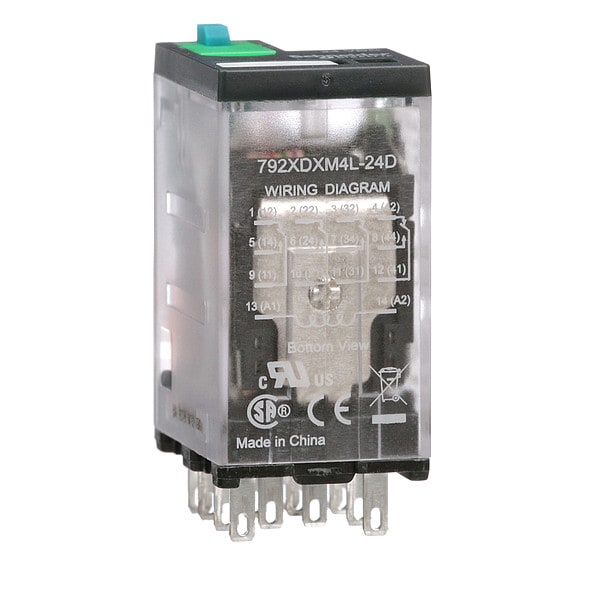

Schneider Electric Plug-In, General Purpose Relay, Square, 6 A, 14 Pins, Faston Connector 792XDXM4L-24D - main

CAD Viewer & Download Files

Plug-In, General Purpose Relay, Square, 6 A, 14 Pins, Faston Connector

  • Mfr # 792XDXM4L-24D

  • Zoro # G0059337

CAD Available
product price: $15.19
/ea

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
792XDXM4L-24D
Zoro #
G0059337
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.54 in
Overall Depth
1.81 in
Body Height
1.07 in
Body Width
0.83 in
Flat Pin Width
0.02 in
Body Depth
1.57 in
Depth
1.07 in (27.2 mm)
Width
0.83 in (21 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
24V DC
Current Rating
6 A
Contact Form
4PDT
Contact Rating (AC)
3 A @ AC-1, 6 A @ 277V, 6 A @ AC-1, 8 A @ 120V
Contact Rating (DC)
3 A @ DC-1 (NC), 6 A @ DC-1 (NO), 8 A @ 30V
Standards
CE Certified, CSA Certified, UL Listed
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Contact Material
Gold Flashed Silver
Status Indicator
LED and Mechanical Flag
Power Consumption - Relay
1.1 W
Socket Code
P
Socket
Mfr. No. 70-782E14, 70-461
Minimum Operating Temperature
-40 Degrees F
Electrical Operating Durability
100,000
Dielectric Strength
1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
IP Rating
IP40
Coil Resistance
640 ohm
Maximum Operating Temperature
131 Degrees F
Operating Current
3 A AC-1 (NC Conforming to IEC), 3 A DC-1 (NC Conforming to IEC), 6 A AC-1 (NO Conforming to IEC), 6 A at 277V AC (Conforming to UL), 6 A DC-1 (NO Conforming to IEC), 8 A at 120V AC (Conforming to UL), 8 A at 30V DC (Conforming to UL)
Mechanical Operating Durability
10,000,000
Horsepower @ 120V AC
1/3 hp
Horsepower @ 240V AC
1/2 hp
Input Voltage
24V DC
For Use With
General Purpose Relay
Resistance Properties
Shock-Resistant, Vibration-Resistant
Motor Rated
Yes
Minimum Switching Current
10 mA
Push-To-Test Method
Lockable Push Test Button
Series
792 Series
Power Consumption
0.8 W
Maximum Switching Voltage
250V AC, 300V DC
Response Time
25 msec
Weight
1.31 oz
Surge Withstand Duration
1.2/50µs
Product Certifications
UL; CSA; CE
Connections Terminals
Faston connectors
Motor Power HP
0.33 hp 120 V AC; 0.5 hp 277 V AC
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Power consumption in W
0.8 W DC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Voltage Range
0.8...1.1 Un AC/DC
Vibration Resistance
3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Shock Resistance
10 gn in operation; 30 gn not operating
Operating Time
25 ms; 20 ms at maximum rated voltage
Contact Composition
4 NO + 4 NC
Product Range
Legacy
Control Type
Lockable test button
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form 4PDT, Current Rating 6 A, Electrical Connection Faston Connector, Flat Pin Width 0.02 in, Number of Pins 14, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 3 A @ AC-1 (NC), 6 A @ 277V, 6 A @ AC-1 (NO), 8 A @ 120V, Contact Rating (DC) 3 A @ DC-1 (NC), 6 A @ DC-1 (NO), 8 A @ 30V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable
