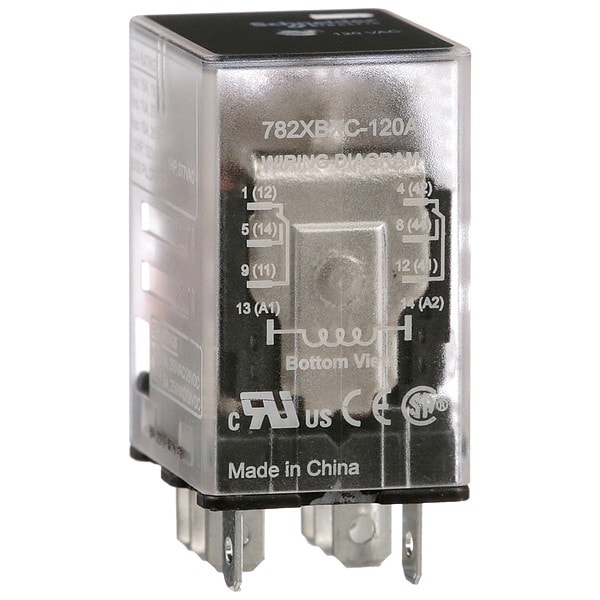

Schneider Electric Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector 782XBXC-120A - main

Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector

  • Mfr # 782XBXC-120A

  • Zoro # G3285064

CAD Available
product price:  $13.39
/ea

Key Features

CAD Drawing
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
782XBXC-120A
Zoro #
G3285064
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.64 in
Overall Depth
1.66 in
Body Width
0.83 in
Body Depth
1.37 in
Flat Pin Width
0.187 in
Body Height
1.07 in
Depth
1.07 in (27.3 mm)
Width
0.83 in (21 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
120V AC
Current Rating
15 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V
Contact Rating (DC)
15 A @ 28V (NO), 7.55 A @ 28V (NC)
Status Indicator
Mechanical Flag
Contact Material
Gold Flashed Silver Alloy
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Power Consumption - Relay
1.2 VA
Socket
Mfr. No. 70-459-1, 70-782D8-1A
Socket Code
J
Standards
CE Certified, CSA Certified, UL Listed
Features
Gold Flashed Contacts
IP Rating
IP40
Push-To-Test Method
No Button
Input Voltage
120V AC
Minimum Operating Temperature
-40 Degrees F
Power Consumption
0.85 W, 1.1 VA
Coil Resistance
4,430 ohm
Response Time
20 msec
Motor Rated
Yes
Horsepower @ 240V AC
1 hp
For Use With
Automation Panels and Controls
Weight
1.27 oz
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Resistance Properties
Shock-Resistant, Vibration-Resistant
Minimum Switching Current
10 mA
Maximum Switching Voltage
250V AC, 300V DC
Electrical Operating Durability
100,000
Horsepower @ 120V AC
1/2 hp
Operating Current
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
Maximum Operating Temperature
131 Degrees F
Mechanical Operating Durability
10,000,000
Series
782 Series
Operating Time
20 ms operating; 20 ms tripping
Power consumption in VA
1.1 VA AC
Contact Composition
2 NO + 2 NC
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Connections Terminals
Faston terminals
Product Certifications
UL; CE; CSA
Vibration Resistance
+/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Shock Resistance
15 gn in operation
Voltage Range
0.8...1.1 Un AC/DC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Power consumption in W
0.85 W DC
Motor Power HP
0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz
Product Range
Legacy
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 8, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V (NO), 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.37 in
