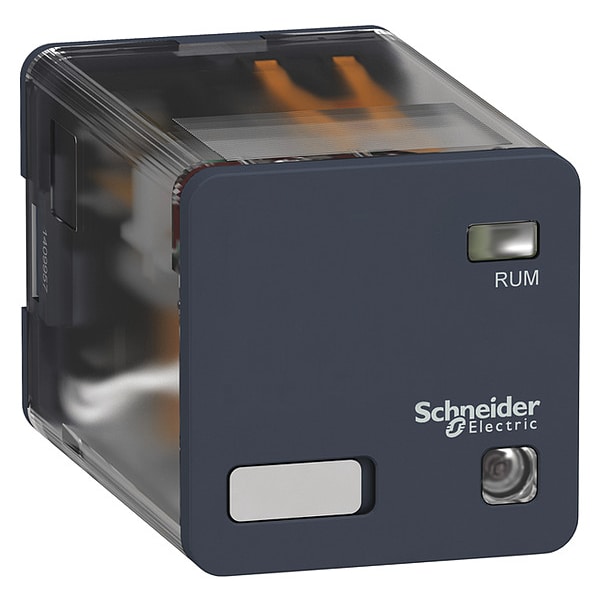

Schneider Electric Plug-In, Plug-In Relay, Octal, 10 A, 8 Pins, Quick Connect RUMC23F7 - main

Plug-In, Plug-In Relay, Octal, 10 A, 8 Pins, Quick Connect

  • Mfr # RUMC23F7

  • Zoro # G3466112

product price: $17.69
/ea
Sold in multiples of 10 for $176.90

Key Features

Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Octal
Number of Pins
8
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RUMC23F7
Zoro #
G3466112
UPC #
785901984276
Country of Origin
China

Dimensions

Overall Height - Relay
1.39 in
Overall Depth
1.39 in
Body Height
1.39 in
Body Width
1.37 in
Body Depth
2.2 in

Details

Item
Plug-In Relay
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Octal
Number of Pins
8
Coil Voltage
120V AC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 250V
Contact Rating (DC)
10 A @ 28V
Power Consumption - Relay
3 VA
Features
IP Degree of Protection: IP40; Mercury Free: Yes, Toxic Heavy Metal Free: Yes
Input Voltage
132V AC
Socket Code
A
Standards
CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed
Status Indicator
LED and Mechanical Flag
Response Time
20 msec
Contact Material
Silver Alloy
Maximum Switching Voltage
250V
Sealing
Enclosed
Maximum Operating Temperature
131 Degrees F
Pin Shape
Round
Coil Resistance
1,700 ohm
IP Rating
IP40
Mechanical Operating Durability
5,000,000
Power Consumption
3 VA
Dielectric Strength
1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Poles with Basic, 2,500V AC Between Coil and Contact with Reinforced
Minimum Operating Temperature
-40 Degrees F
Series
Harmony(TM) RUM Series
Weight
3.04 oz
For Use With
Hard-Wired Logic Automated Systems
Resistance Properties
Shock-Resistant, Vibration-Resistant
Frequency
50/60 Hz
Minimum Switching Current
10 mA
Push-To-Test Method
No Test Button
Electrical Operating Durability
100,000
Protection Category
RT I
Operating Time
20 ms at nominal voltage
Switching Power
Max 2500 VA/280 W; Min 170 mW 10 mA, 17 V
Switching Voltage
250 V IEC

Description

Relay, Base Shape Octal, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Quick-Connect, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 250V, Contact Rating (DC) 10 A @ 28V, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 2.2 in, Body Height 1.39 in, Body Width 1.37 in, Coil Resistance 1,700 ohm, Contact Material Silver Alloy
