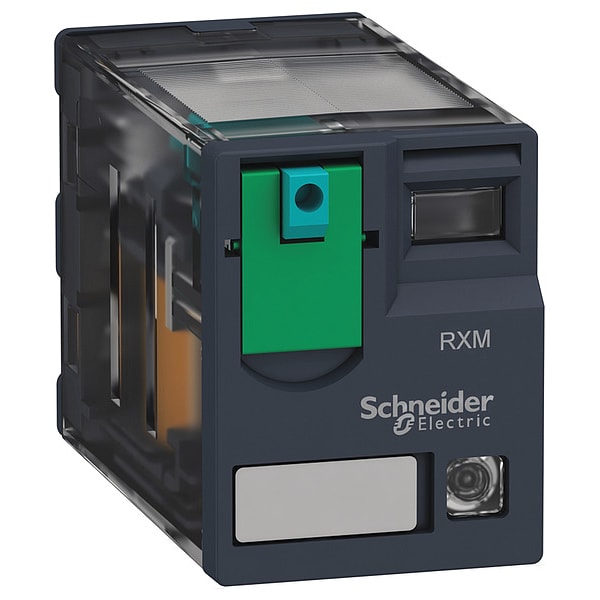

Schneider Electric Plug-In, Plug-In Relay, Square, 12 A, 8 Pins, Quick Connect RXM2AB2FD - main

Plug-In, Plug-In Relay, Square, 12 A, 8 Pins, Quick Connect

  • Mfr # RXM2AB2FD

  • Zoro # G3466873

product price: $10.29
/ea
Sold in multiples of 10 for $102.90

Key Features

Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
8
Coil Voltage
110V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RXM2AB2FD
Zoro #
G3466873
UPC #
785901548034
Country of Origin
China

Dimensions

Overall Height - Relay
1.06 in
Flat Pin Width
0.09 in
Overall Depth
1.8 in
Body Height
1.06 in
Body Width
0.82 in
Body Depth
1.57 in

Details

Item
Plug-In Relay
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
8
Coil Voltage
110V DC
Current Rating
12 A
Contact Form
DPDT
Contact Rating (AC)
12 A @ 250V
Contact Rating (DC)
12 A @ 28V
Contact Material
Silver Alloy
Features
IP Degree of Protection: IP40; Mercury Free: Yes, Toxic Heavy Metal Free: Yes
Power Consumption - Relay
0.9 W
Response Time
20 msec
Status Indicator
LED and Mechanical Flag
Input Voltage
121V DC
Socket Code
K
Standards
CE Certified, CSA C22.2 No 14, CSA Certified, EN/IEC 61810-1, GOST, Lloyd's, UL 508, UL Listed
Electrical Operating Durability
100,000
Resistance Properties
Shock-Resistant, Vibration-Resistant
Pin Shape
Flat
Maximum Switching Voltage
250V
IP Rating
IP40
Push-To-Test Method
Lockable Push Test Button
Mechanical Operating Durability
10,000,000
Power Consumption
0.9 W
Minimum Operating Temperature
-40 Degrees F
For Use With
RXZE Socket
Dielectric Strength
1,300V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Basic Insulation, 2,000V AC Between Poles with Basic Insulation
Maximum Operating Temperature
131 Degrees F
Minimum Switching Current
10 mA
Coil Resistance
13,440 ohm
Weight
1.28 oz
Series
Harmony(TM) RXM Series
Sealing
Enclosed
Switching Power
Max 3000 VA/336 W; Min 170 mW 10 mA, 17 V
Switching Voltage
250 V IEC
Operating Time
20 ms
Protection Category
RT I

Description

Relay, Base Shape Square, Coil Voltage 110V DC, Contact Form DPDT, Current Rating 12 A, Electrical Connection Quick-Connect, Flat Pin Width 0.09 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 12 A @ 250V, Contact Rating (DC) 12 A @ 28V, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.57 in, Body Height 1.06 in, Body Width 0.82 in, Coil Resistance 13,440 ohm, Contact Material Silver Alloy
