  11. Open Power Relay, Socket Mounted, DPST-NO, 120V AC
Shop All Power Relays
Siemens

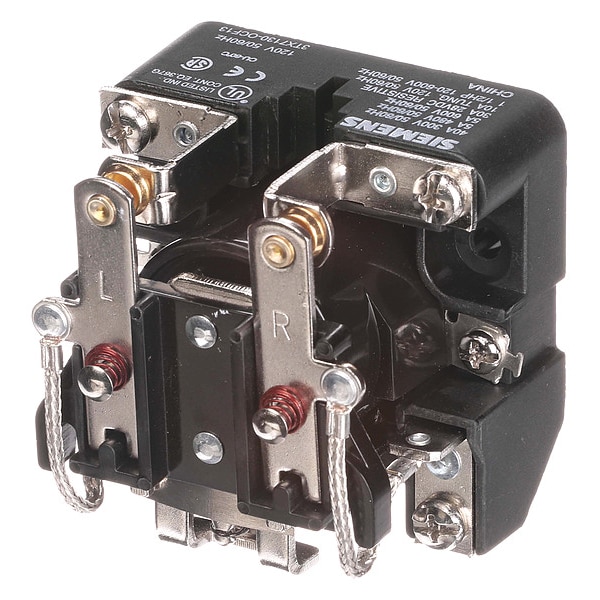

Open Power Relay, Socket Mounted, DPST-NO, 120V AC

product price: $57.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Coil Volts 120V AC
  • AC Contact Rating - Relay 40A @ 120V
  • Contact Form - Relay DPST-NO
  • Mounting - Relay Plug In
  • Power Consumption - Relay 4.0 W, 10.0 VA
See all product information

Product Information

  • Brand Siemens
  • MFR # 3TX7130-0CF13
  • Zoro # G8524312
  • UPC #
    754554762418
  • Country of Origin China
  • Category Power Relays

Dimensions

Overall Height - Relay 2.25 in
Body Depth - Relay 2.43 in
Body Depth 2.43 in
Overall Depth 2.25 in

Details

Item - Relay Open Power Relay
Coil Volts 120V AC
AC Contact Rating - Relay 40A @ 120V
Contact Form - Relay DPST-NO
Mounting - Relay Plug In
Power Consumption - Relay 4.0 W, 10.0 VA
Contact Material Silver Alloy
Item Open Power Relay
Standards REACH Art. 33, RoHS Compliant
Contact Form DPST-NO
Features Heavy Duty
Current Rating 40 A
Input Voltage 120V AC
Minimum Operating Temperature -40 Degrees F
Series 3TX71 Series
Contact Rating (AC) 40 A @ 120V
Mechanical Operating Durability 1,000,000
Power Consumption 4 W, 10 VA
Socket Code Configurator Socket
Mounting Style Surface
Maximum Switching Voltage 600V AC
Weight 11.01 oz
Response Time 30 msec
Electrical Operating Durability 100,000
Maximum Operating Temperature 158 Degrees F
Motor Rated Yes
Coil Voltage Type AC
Coil Voltage 120V AC
Dielectric Strength 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles
Horsepower @ 120V AC 1/3 hp
Relay Mounting Style Socket
Status Indicator No Indicator

Description

Open Power Relay, Coil Voltage 120V AC, Contact Form DPST-NO, Current Rating 40 A, Status Indicator No Indicator, Contact Rating (AC) 40 A @ 120V, Horsepower @ 120V AC 1/3 hp, Mounting Style Surface, Body Depth 2.43 in, Contact Material Silver Alloy, Dielectric Strength 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles, Electrical Operating Durability 100,000, Features Heavy Duty, Input Voltage 120V AC
