Shop SCHNEIDER ELECTRIC

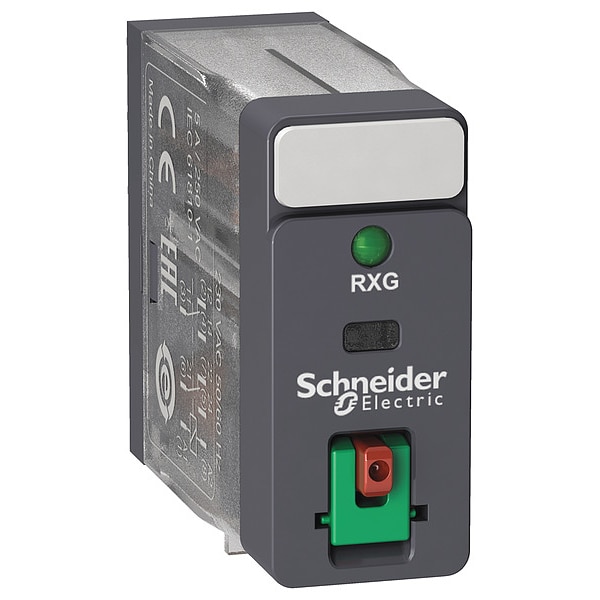

Plug-In, Plug-In Relay, Square, 5 A, 8 Pins, Quick Connect

  • Mfr # RXG22M7

  • Zoro # G3465647

product price:
$
14.99
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
8
Coil Voltage
220V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RXG22M7
Zoro #
G3465647
UPC #
785901998358
Country of Origin
China
Item
Relay
Mounting Style
Plug-In
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
8
Coil Voltage
220V AC
Current Rating
5 A
Contact Form
DPDT
Contact Rating (AC)
5 A @ 250V
Contact Rating (DC)
5 A @ 30V
Contact Material
Silver Alloy
Standards
CE Certified, CSA C22.2 No 14, CSA Certified, DNV-GL, EAC, IEC 61810-1, UL 508, UL Listed
Socket Code
K
Response Time
20 msec
Input Voltage
1.1V AC
Power Consumption - Relay
0.82 VA
Features
IP Degree of Protection: IP40; Mercury Free: Yes, Toxic Heavy Metal Free: Yes
Status Indicator
LED and Mechanical Flag
Minimum Switching Current
10 mA
Series
Harmony(TM) RXG Series
Insulation Resistance
1,000 megaohm
Electrical Operating Durability
100,000
Maximum Switching Voltage
250V AC, 30V DC
Sealing
Enclosed
Pin Shape
Flat
Weight
0.64 oz
Push-To-Test Method
Lockable
Resistance Properties
Shock-Resistant, Vibration-Resistant
Dielectric Strength
1,000V AC Between Contacts with Micro Disconnection, 3,000V AC Between Poles with Basic Insulation, 5,000V AC Between Coil and Contact with Reinforced Insulation
Mechanical Operating Durability
10,000,000
Frequency
50/60 Hz
Power Consumption
0.82 VA
IP Rating
IP40
For Use With
Hard-Wired Logic Automated Systems
Maximum Operating Temperature
158 Degrees F
Minimum Operating Temperature
-40 Degrees F
Coil Resistance
21,000 ohm
Operating Time
20 ms
Protection Category
RT I
Switching Power
Max 1250 VA; Min 50 mW at 10 mA, 5 V DC
Switching Voltage
250 V AC/30 V DC

Description

Relay, Base Shape Square, Coil Voltage 220V AC, Contact Form DPDT, Current Rating 5 A, Electrical Connection Quick-Connect, Flat Pin Width 0.09 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 5 A @ 250V, Contact Rating (DC) 5 A @ 30V, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.36 in, Body Height 1.14 in, Body Width 0.51 in, Coil Resistance 21,000 ohm, Contact Material Silver Alloy
