  13. Plug-In, Plug-In Relay, Square, 5 A, 8 Pins, Quick Connect

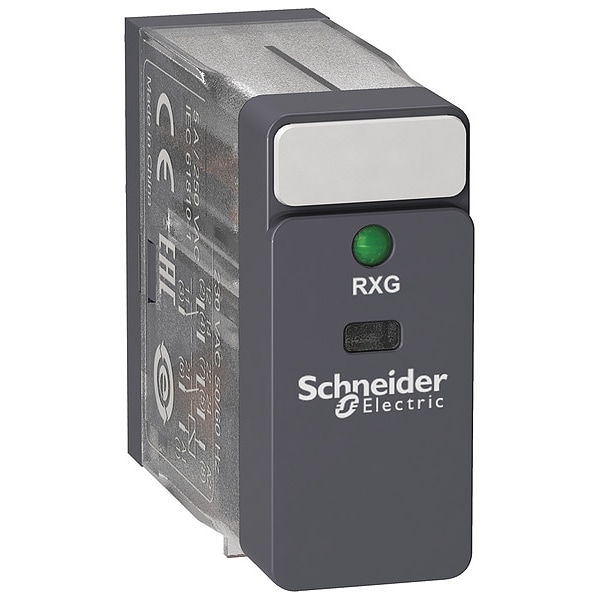

Schneider Electric Plug-In, Plug-In Relay, Square, 5 A, 8 Pins, Quick Connect RXG23F7 - main

Plug-In, Plug-In Relay, Square, 5 A, 8 Pins, Quick Connect

  • Mfr # RXG23F7

  • Zoro # G1978865

product price: $11.79
/ea
Sold in multiples of 10 for $117.90

Key Features

Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
8
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RXG23F7
Zoro #
G1978865
UPC #
-
Country of Origin
China

Dimensions

Body Depth
1.36 in
Body Width
0.51 in
Body Height
1.14 in
Overall Depth
1.59 in
Flat Pin Width
0.09 in

Details

Item
Plug-In Relay
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
8
Coil Voltage
120V AC
Current Rating
5 A
Contact Form
DPDT
Contact Rating (AC)
5 A @ 250V
Contact Rating (DC)
5 A @ 30V
Features
Insulation Class F; flag Local Signalling; With Status Led
Contact Material
Silver Alloy
Power Consumption - Relay
0.82VA
Standards
CE Certified, CSA C22.2 No 14, CSA Certified, DNV-GL, EAC, IEC 61810-1, UL 508, UL Listed
Status Indicator
LED and Mechanical Flag
Weight
0.64 oz
Maximum Switching Voltage
250V AC, 30V DC
Socket Code
K
Push-To-Test Method
No Test Button
IP Rating
IP40
Dielectric Strength
1,000V AC Between Contacts with Micro Disconnection, 3,000V AC Between Poles with Basic Insulation, 5,000V AC Between Coil and Contact with Reinforced Insulation
Power Consumption
0.82 VA
For Use With
Hard-Wired Logic Automated Systems
Resistance Properties
Shock-Resistant, Vibration-Resistant
Pin Shape
Flat
Frequency
50/60 Hz
Mechanical Operating Durability
10,000,000
Series
Harmony(TM) RXG Series
Maximum Operating Temperature
158 Degrees F
Minimum Switching Current
10 mA
Electrical Operating Durability
100,000
Insulation Resistance
1,000 megaohm
Response Time
20 msec
Input Voltage
1.1V AC
Sealing
Enclosed
Minimum Operating Temperature
-40 Degrees F
Coil Resistance
6,300 ohm
Switching Voltage
250 V AC || 30 V DC
Dielectric Voltage
1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
Protection Category
RT I
Utilisation Coefficient
0.2
Electrical Insulation Class
Class F
Cover Color
Standard
Operating Rate
Less than or Equal to 1800 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load
Reset Time
20 ms
Average Consumption in VA
0.82 VA 60 Hz
Minimum Switching Capacity
50 mW at 10 mA, 5 V DC
Torque Value
7.08 lbf.in (0.8 N.m)
Operating Time
20 ms
Vibration Resistance
3 gn +/- 0.75 mm 10 to 150 Hz)in operation; 5 gn +/- 0.75 mm 10 to 150 Hz)not in operation
Test Levels
Level A group mounting
Shock Resistance
20 gn in operation; 100 gn not in operation
Device Presentation
Complete product
Relative Humidity
10 to 85%
Contact Type and Composition
2 C/O
Control Circuit Voltage
120 V AC 50/60 Hz
Ambient Air Temperature For Operation
-40 to 158°F (-40 to 70°C)
Ambient Air Temperature For Storage
-40 to 185°F (-40 to 85°C)
Overvoltage Category
III
Pollution Degree
2
Maximum Switching Capacity
1250 VA
Contact Resistance
100 mOhm
Conventional Enclosed Thermal Current
5 A -40 to 131°F (-40 to 55°C)
Product Certifications
CE; CSA; UL; EAC; DNV-GL
Drop-Out Voltage Threshold
Greater than or Equal to 0.3 Uc AC
Series Name
Interface relay
Load Current
5 A 250 V AC
Rated Insulation Voltage
250 V IEC; 300 V CSA; 300 V UL
Control Circuit Voltage Limits
0.8 to 1.1 Uc AC

Description

Plug-In Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 5 A, Electrical Connection Quick-Connect, Flat Pin Width 0.09 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 5 A @ 250V, Contact Rating (DC) 5 A @ 30V, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.36 in, Body Height 1.14 in, Body Width 0.51 in, Coil Resistance 6,300 ohm, Contact Material Silver Alloy
