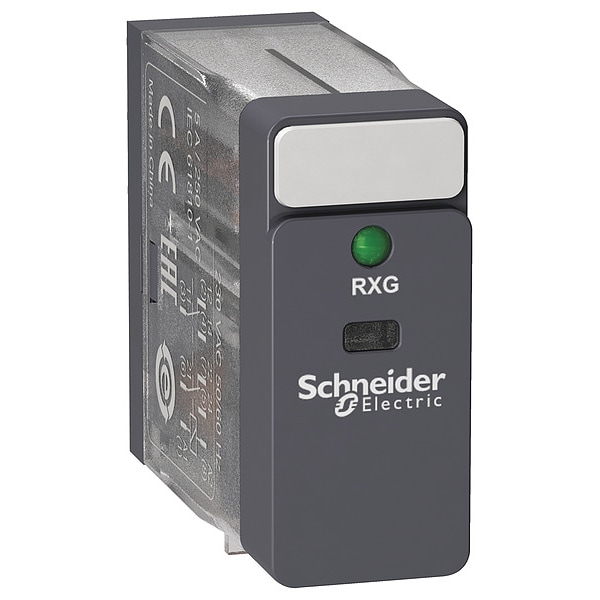

Schneider Electric Plug-In, Plug-In Relay, Square, 5 A, 8, Quick Connect RXG23E7 - main

Plug-In, Plug-In Relay, Square, 5 A, 8, Quick Connect

  • Mfr # RXG23E7

  • Zoro # G3464877

product price: $14.25
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
8
Coil Voltage
48V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RXG23E7
Zoro #
G3464877
UPC #
785901949145
Country of Origin
China

Dimensions

Overall Height - Relay
1.25 in
Overall Depth
1.61 in
Body Width
0.51 in
Body Depth
1.36 in
Body Height
1.14 in
Flat Pin Width
0.09 in

Details

Item
Plug-In Relay
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
8
Coil Voltage
48V AC
Current Rating
5 A
Contact Form
DPDT
Contact Rating (AC)
5 A @ 250V
Contact Rating (DC)
5 A @ 30V
Contact Material
Silver Alloy
Power Consumption - Relay
0.82 VA
Response Time
20 msec
Socket Code
K
Status Indicator
LED and Mechanical Flag
Input Voltage
1.1V AC
Standards
CE Certified, CSA C22.2 No 14, CSA Certified, DNV-GL, EAC, IEC 61810-1, UL 508, UL Listed
Features
IP Degree of Protection: IP40; Mercury Free: Yes, Toxic Heavy Metal Free: Yes
Frequency
50/60 Hz
Power Consumption
0.82 VA
Sealing
Enclosed
Weight
0.64 oz
Minimum Operating Temperature
-40 Degrees F
Mechanical Operating Durability
10,000,000
Resistance Properties
Shock-Resistant, Vibration-Resistant
Coil Resistance
1,100 ohm
Electrical Operating Durability
100,000
Dielectric Strength
1,000V AC Between Contacts with Micro Disconnection, 3,000V AC Between Poles with Basic Insulation, 5,000V AC Between Coil and Contact with Reinforced Insulation
IP Rating
IP40
Insulation Resistance
1,000 megaohm
Maximum Operating Temperature
158 Degrees F
Pin Shape
Flat
Series
Harmony(TM) RXG Series
Maximum Switching Voltage
250V AC, 30V DC
For Use With
Hard-Wired Logic Automated Systems
Minimum Switching Current
10 mA
Switching Power
Max 1250 VA; Min 50 mW at 10 mA, 5 V DC
Protection Category
RT I
Switching Voltage
250 V AC/30 V DC
Operating Time
20 ms

Description

Relay, Base Shape Square, Coil Voltage 48V AC, Contact Form DPDT, Current Rating 5 A, Electrical Connection Quick-Connect, Flat Pin Width 0.09 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 5 A @ 250V, Contact Rating (DC) 5 A @ 30V, Mounting Style Plug-In, Body Depth 1.36 in, Body Height 1.14 in, Body Width 0.51 in, Coil Resistance 1,100 ohm, Contact Material Silver Alloy
