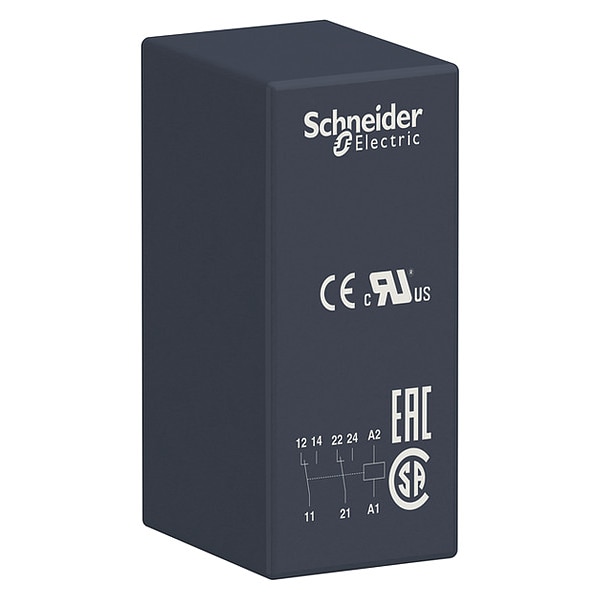

Schneider Electric Plug-In, Plug-In Relay, Square, 8 A, 8 Pins, Quick Connect RSB2A080P7 - main

Plug-In, Plug-In Relay, Square, 8 A, 8 Pins, Quick Connect

  • Mfr # RSB2A080P7

  • Zoro # G3463538

product price: $5.19
/ea
Sold in multiples of 10 for $51.90

Key Features

Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
8
Coil Voltage
230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RSB2A080P7
Zoro #
G3463538
UPC #
785901618171
Country of Origin
Austria

Dimensions

Overall Height - Relay
1.14 in
Body Height
1.14 in
Body Width
0.49 in
Overall Depth
0.77 in
Body Depth
0.62 in

Details

Item
Plug-In Relay
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
8
Coil Voltage
230V AC
Current Rating
8 A
Contact Form
DPDT
Contact Rating (AC)
8 A @ 250V
Contact Rating (DC)
8 A @ 28V
Features
Clear Cover
Status Indicator
No Indicator
Response Time
20 msec
Power Consumption - Relay
0.75 VA
Input Voltage
345V AC
Standards
CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed
Contact Material
Silver Alloy
Weight
0.48 oz
Electrical Operating Durability
100,000
Dielectric Strength
1,000V AC Between Contacts, 2,500V AC Between Poles, 5,000V AC Between Coil and Contacts
For Use With
Hard-Wired Logic Automated Systems
IP Rating
IP40
Maximum Operating Temperature
158 Degrees F
Push-To-Test Method
No Test Button
Coil Resistance
33,000 ohm
Frequency
50/60 Hz
Resistance Properties
Shock-Resistant, Vibration-Resistant
Series
Harmony(TM) RSB Series
Minimum Operating Temperature
-40 Degrees F
Mechanical Operating Durability
5,000,000
Power Consumption
0.75 VA
Sealing
Enclosed
Maximum Switching Voltage
300V DC
Minimum Switching Current
10 mA
Pin Shape
Flat (PCB Type)
Protection Category
RT I
Switching Power
Max 2000 VA/224 W; Min 120 mW 10 mA, 12 V
Operating Time
20 ms operating || 20 ms reset
Switching Voltage
12/300 V DC

Description

Relay, Base Shape Square, Coil Voltage 230V AC, Contact Form DPDT, Current Rating 8 A, Electrical Connection Quick-Connect, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Flat (PCB Type), Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 8 A @ 250V, Contact Rating (DC) 8 A @ 28V, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 0.62 in, Body Height 1.14 in, Body Width 0.49 in, Coil Resistance 33,000 ohm, Contact Material Silver Alloy
