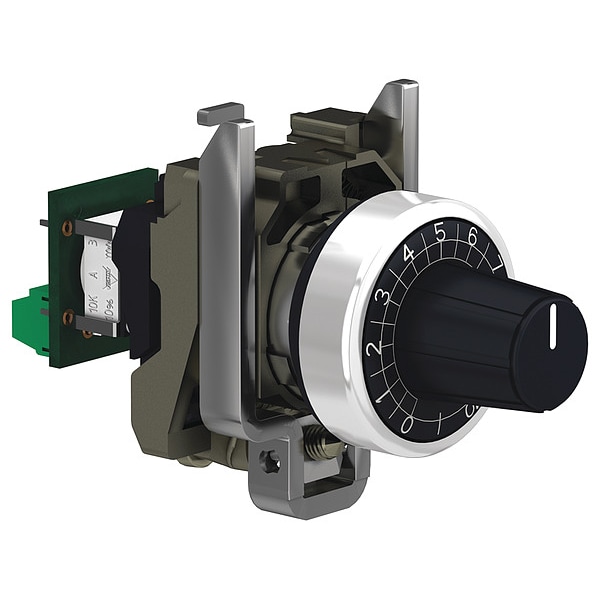

Schneider Electric Potentiometer, Standard, 22 mm XB4BD912R47K - main

Potentiometer, Standard, 22 mm

  • Mfr # XB4BD912R47K

  • Zoro # G0195626

product price: $44.69
/ea

Key Features

Watts
1 W
Ohms
470,000
Max. Voltage
30V AC, 42V DC
NEMA Rating
13, 4X
Size
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4BD912R47K
Zoro #
G0195626
UPC #
785901531272
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Depth
82 mm
Cad Overall Width
30 mm
Cad Overall Height
47 mm
Mounting Diameter
22 mm
Overall Depth
3.23 in
Overall Height
1.85 in
Overall Width
1.18 in
Panel Cutout Diameter
22 mm

Details

Item
Potentiometer
Watts
1 W
Ohms
470,000
Max. Voltage
30V AC, 42V DC
NEMA Rating
13, 4X
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Product Or Component Type
potentiometer
Protective Treatment
TH
Device Short Name
XB4
Rated Power In W
1 W 70°C
Potentiometer Characteristic
linear
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Standards
CSA C22.2 No 14 || UL 508 || EN/IEC 60947-1
Ik Degree Of Protection
IK06 IEC 50102
Ip Degree Of Protection
IP66 IEC 60529 || IP69 IEC 60529 || IP69K IEC 60529
Material
cermet
Precision Of Internal Conversion Resistor
-0.1
Head Type
standard
Main Group
potentiometer
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
[Us] Rated Supply Voltage
<= 30 V AC || <= 42 V DC
Shape Of Signaling Unit Head
round
Operator Profile
knurled knob, with white)
Product Compatibility
Ø 6 mm shaft
Group Of Product
potentiometer knurled knob
Ohmic Value
47000 Ohm
Mechanical Durability
50000 cycles
Colour Of Marking
white
Bezel Material
chromium plated metal
Ambient Air Temperature For Operation
-40-70°C
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Certifications
UL Listed || CSA || BV
Device Presentation
complete product
Electrical Shock Protection Class
class II IEC 60536
Rated Supply Voltage
Less than or Equal to 30 V AC; Less than or Equal to 42 V DC
Operating Temperature - Maximum
158 Degrees F
Knob Style
Standard
Power Rating
1 W
Operating Temperature - Minimum
-40 Degrees F
Voltage Rating - Maximum
42 V DC
IP Rating
IP66
Resistance Rating
47,000 ohm
Series
XB4
Resistance Properties
Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating
13, 4X

Description

Potentiometer, Watts 1 W, Ohms 470,000, Max. Voltage 30V AC, 42V DC, NEMA Rating 13, 4X, 22 mm Size
