Shop EATON

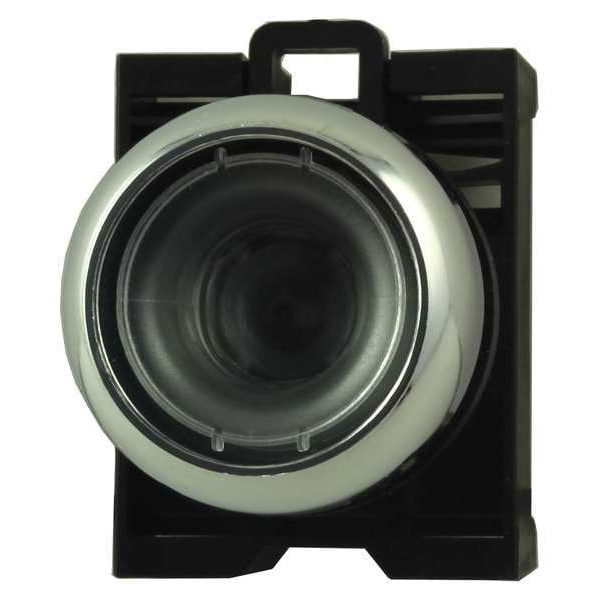

Push Button operator, 22 mm, No Cap

  • Mfr # M22M-D-X

  • Zoro # G6131237

product price:  $10.15
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Material
Metal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M22M-D-X
Zoro #
G6131237
UPC #
786685898605
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Product Height
1 in
Product Width
6 in
Product Length/Depth
4 in
Overall Width
6 in
Manufacturer Warranty Length
1 yr
Overall Depth
4 in
Overall Height
1 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Bezel Material
Metal
Includes
Metal Bezel
IP Rating
IP67, IP69K
Color
No Cap
NEMA Rating
1, 13, 2, 3, 4, 4X
Type of Operator
Flush Button
Basic Material
Metal
Bezel
Metal
Number of Operators
1
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Type
M22 Pushbutton Operator
Series
M22
Lamp Type
LED
Illumination
Non-illuminated
Environmental rating
IP67, IP69K (IP66 key-release)
Operating mode
Momentary
Special features
Buttonless
Product Name
Eaton M22 modular pushbutton
Certifications
UL Listed
Resistance Properties
Corrosion Resistant
NEMA Enclosure Rating
13, 4X
Operator Material
Metal
Operating Temperature - Minimum
-13 Degrees F
Hazardous Location Specification
Not Rated
Number of Indicator Lights
0
Operating Temperature - Maximum
158 Degrees F
Product Type
Push Button Operators

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color No Cap, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP67, IP69K, Legend Not Applicable, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Includes Metal Bezel, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
