Shop SCHNEIDER ELECTRIC

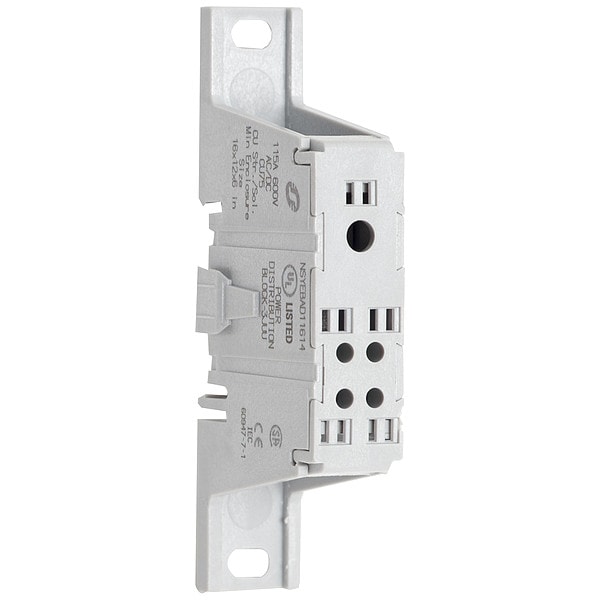

Power Distribution Block, Finger-Safe, 1 Pole, 115 A Copper, 600 V AC/DC, DIN Rail, Screw

  • Mfr # NSYEBAD11614

  • Zoro # G505848807

product price:  $36.29
/ea

Key Features

Power Distribution Block Design
Finger-Safe
For Conductor Material
Copper
Maximum Current - Copper Conductor
115 A
Maximum Voltage
600 V AC/DC
Number of Poles
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NSYEBAD11614
Zoro #
G505848807
UPC #
785901015420
Country of Origin
Korea, Republic of

Dimensions

Width
0.85 in
Length
4.14 in
Depth
1.71 in
For Load Copper Wire Size - Maximum
10 AWG
For Line Copper Wire Size - Minimum
14 AWG
Overall Depth
1.71 in
For Line Copper Wire Size - Maximum
2 AWG
Overall Length
4.14 in
Overall Width
0.85 in
For Channel Size
35 mm
For Load Copper Wire Size - Minimum
14 AWG
Wire Strip Length
Line 0.63 in; Load 0.44 in top; Load 0.69 in bottom

Details

Item
Power Distribution Block
Power Distribution Block Design
Finger-Safe
For Conductor Material
Copper
Maximum Current - Copper Conductor
115 A
Maximum Voltage
600 V AC/DC
Number of Poles
1
Line Connections/Pole
1
Load Connections/Pole
4
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Terminal Material
Aluminum
Housing Material
Thermoplastic
Maximum Operating Temperature
257 Degrees F
Mounting Type
DIN Rail, Screw
Standards
CE Certified, CSA Certified, CSA File 70361 Class 6228 01, NEMA, REACH Regulation, RoHS Compliant, UL Listed, UL Listed File E323110 CCN QPQS, WEEE
Housing Color
Gray
Minimum Operating Temperature
-40 Degrees F
Special Features
Enables Ganging of the Blocks to Create Multipole Configurations According to Application Requirements, Enclosed IEC Versions of our NEMA 9080 Power Distribution Blocks, Finger-Safe, One Pole Modular Units with an Interlocking Dovetail Feature, Power Terminal Blocks are Finger Safe from the Front According to IP20, This Block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with Fuses and Circuit Breakers, This Block is UL Listed and CSA Certified and RoHS Compliant
Number of Circuits
5
Short Circuit Current Rating
65 kA
Color
Gray
Features
Halogen free product; Mercury Free
UL 94 Flammability Rating
V-0
Secondary Wire Range
14 to 10 AWG (Copper)
Primary Wire Range
14 to 2 AWG (Copper)

Description

Power Distribution Block, For Conductor Material Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2 AWG, Load Connections/Pole 4, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 10 AWG, Maximum Current - Copper Conductor 115 A, Maximum Voltage 600 V, Mounting Type DIN-Rail, Surface, Number of Poles 1, Overall Depth 1.71 in
