Shop SCHNEIDER ELECTRIC

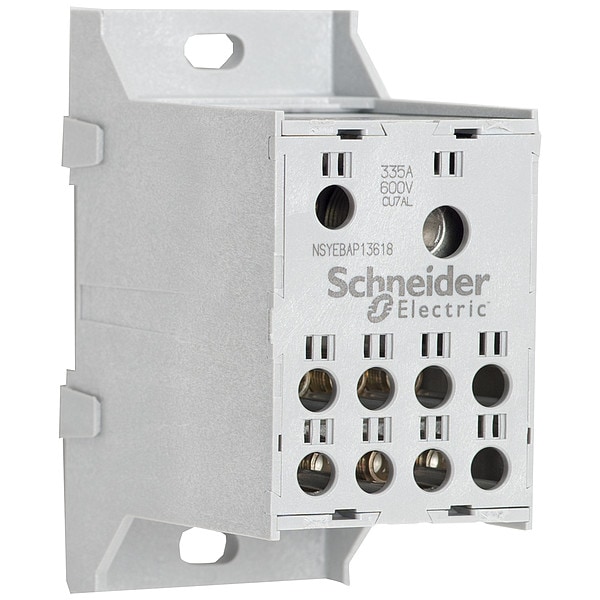

Power Distribution Block, Finger-Safe, 1 Pole, 335 A Copper, 600 V AC/DC, Panel, Screw

  • Mfr # NSYEBAP13618

  • Zoro # G305848755

product price:
$
129.99
/ea
Free Shipping & Returns

Key Features

Power Distribution Block Design
Finger-Safe
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
335 A
Maximum Current - Aluminum Conductor
270 A
Maximum Voltage
600 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NSYEBAP13618
Zoro #
G305848755
UPC #
785901641957
Country of Origin
United States

Dimensions

Width
2.26 in
Depth
3.14 in
Length
4.39 in
For Load Aluminum Wire Size - Minimum
6 AWG
For Line Aluminum Wire Size - Minimum
6 AWG
For Line Aluminum Wire Size - Maximum
3/0 AWG, 400 kcmil
For Load Copper Wire Size - Maximum
2 AWG
For Load Copper Wire Size - Minimum
14 AWG
Overall Length
4.39 in
Overall Width
2.26 in
Overall Depth
3.14 in
For Load Aluminum Wire Size - Maximum
2 AWG
For Line Copper Wire Size - Minimum
14 AWG
For Line Copper Wire Size - Maximum
3/0 AWG, 400 kcmil
Wire Strip Length
Line 1 in; Line 1.44 in; Load 0.63 in top; Load 0.63 in bottom
Wire Rope Length
4.39 in

Details

Item
Power Distribution Block
Power Distribution Block Design
Finger-Safe
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
335 A
Maximum Current - Aluminum Conductor
270 A
Maximum Voltage
600 V AC/DC
Number of Poles
1
Line Connections/Pole
1
Load Connections/Pole
8
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Terminal Material
Aluminum
Housing Material
Thermoplastic
Maximum Operating Temperature
257 Degrees F
Mounting Type
Panel, Screw
Standards
CE Certified, CSA Certified, CSA File 70361 Class 6228 01, NEMA, REACH Regulation, RoHS Compliant, UL Listed, UL Recognized E60616 CCN XCFR2, WEEE
Special Features
Enables Ganging of the Blocks to Create Multipole Configurations According to Application Requirements, Enclosed IEC Versions of our NEMA 9080 Power Distribution Blocks, Finger-Safe, One Pole Modular Units with an Interlocking Dovetail Feature, Power Terminal Blocks are Finger Safe from the Front According to IP20, This Block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with Fuses and Circuit Breakers, This Block is UL Listed and CSA Certified and RoHS Compliant
Housing Color
Gray
Minimum Operating Temperature
-40 Degrees F
Number of Circuits
9
Color
Gray
Short Circuit Current Rating
100 kA
Features
Halogen free product; Mercury Free
Primary Wire Range
14 to 3/0 AWG (Copper), 6 AWG to 400 kcmil (Aluminum), 6 AWG to 400 kcmil (Copper), 6 to 3/0 AWG (Aluminum)
Secondary Wire Range
14 to 2 AWG (Copper), 6 to 2 AWG (Aluminum)
UL 94 Flammability Rating
V-0

Description

Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 3/0 AWG, 400 kcmil, Load Connections/Pole 8, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 335 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 1
