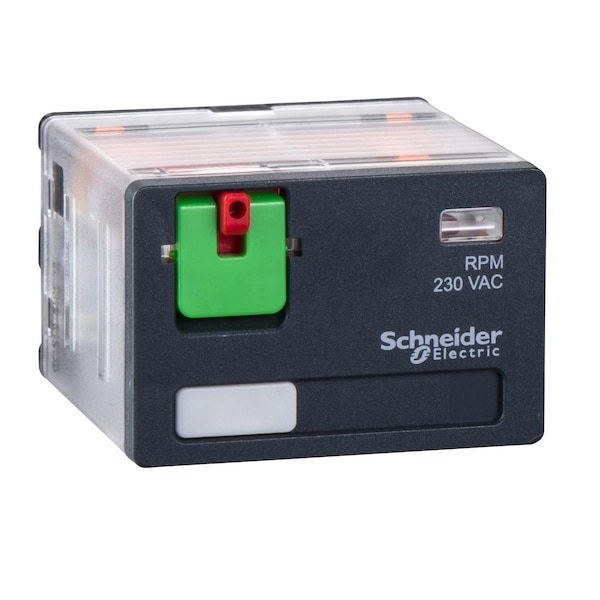

Schneider Electric Power plug-in relay, 15 A, 4 CO, 230 V A, 230V AC Coil Volts, 4 C/O RPM41P7 - main

Power plug-in relay, 15 A, 4 CO, 230 V A, 230V AC Coil Volts, 4 C/O

  • Mfr # RPM41P7

  • Zoro # G500904973

product price:  $14.89
/ea
Sold in multiples of 10 for $148.90

Key Features

Coil Voltage
230V AC
Current Rating
15 A
Contact Rating (AC)
15A @ 250V AC
Contact Rating (DC)
15A @ 28V DC
Features
Lockable Test Button
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RPM41P7
Zoro #
G500904973
UPC #
-
Country of Origin
China

Details

Item
Plug-In Relay
Coil Voltage
230V AC
Current Rating
15 A
Contact Rating (AC)
15A @ 250V AC
Contact Rating (DC)
15A @ 28V DC
Features
Lockable Test Button
Standards
UL 508; EN/IEC 61810-1; CSA C22.2 No 14; EAC
Contact Material
AgNi
Power Consumption - Relay
2.5 VA
Operating Temp. Range
-40-55°C
Protection Category
RT I
Operating Time
20 ms at nominal voltage
Dielectric Strength
1500 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with reinforced; 2000 V AC between poles with basic
Series
RPM; Power
Switching Power
Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V
Switching Voltage
250 V IEC
Coil Resistance
7350 Ohm
Pin Shape
flat
Pollution Degree
3
Shock Resistance
15 gnin operation, 30 gnnot operating
Rated Operational Voltage Limits
184...253 V AC
Device Short Name
RPM
Operating Position
any position
Series Name
Power
Average Coil Consumption In VA
2.5 60 Hz
Mechanical Durability
10000000 cycles
Ip Degree of Protection
IP40 conforming to IEC 60529
Utilisation Coefficient
0.2
Vibration Resistance
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
[Ithe] Conventional Enclosed Thermal Current
15 A -40-55°C
Ambient Air Temperature For Storage
-40-85°C
Drop-Out Voltage Threshold
>= 0.15 Uc AC
[Uimp] Rated Impulse Withstand Voltage
4 kV 1.2/50µs
Device Presentation
complete product
Minimum Switching Capacity
170 mW 10 mA, 17 V
Load Current
15 A 250 V AC, 15 A 28 V DC
Average Resistance
7350 Ohm at 20°C +/- 15 %
Operating Rate
<= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
Electrical Durability
100000 cycles resistive
Ambient Air Temperature For Operation
-40-55°C
[Ui] Rated Insulation Voltage
250 V IEC, 300 V CSA, 300 V UL
Test Levels
level A group mounting
Maximum Switching Capacity
3750 VA, 420 W
Status Indicator
No Indicator

Description

Power plug-in relay,15 A,4 CO,230 V A
